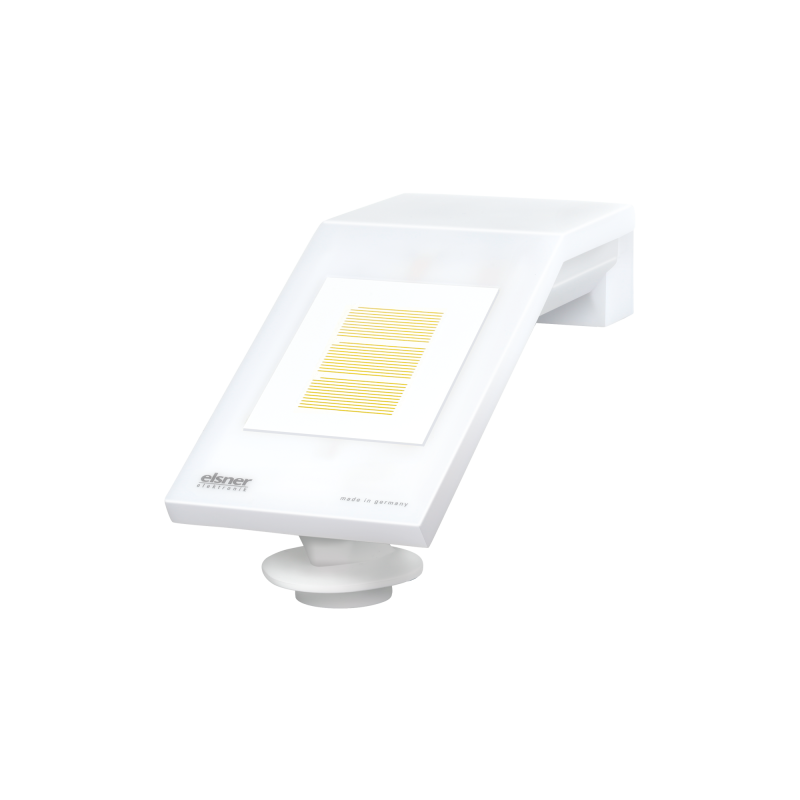

ELSNER 30136 P04i-GPS Weather Station

ELSNER 30136 P04i-GPS Weather Station

The ELSNER 30136 P04i-GPS weather station is designed for use with the WS1/1000 Color/Style and WS1000 Connect systems. This weather station precisely measures temperature, wind speed and brightness, offering reliable data for various home and industrial automation applications.

General Characteristics

• Housing: made of plastic
• Color: white/translucent
• Mounting: on wall or rod
• Protection class: IP44
• Dimensions (W x H x D): 62 mm × 75 mm × 155 mm
• Total weight: about 90g
• Ambient temperature: -30°C... +50°C
• Storage temperature: -30°C... +70°C

Power and Connectivity

• Supply voltage: 24V AC SELV
• Current consumption: ≤ 105mA
• Connector: 4-pin M8
• Connection cable: 4x 0.8 mm, maximum length 100 m

Sensors and Functionality

• Temperature measurement: -30°C... +50°C
• Wind speed measurement: 0... 35 m/s
• Brightness measurement: 0 Lux... 99000 Lux
• Rain and snow recognition: the sensor surface is heated to detect only drops and flakes, excluding fog or dew.
• GPS signal reception: provides the time and current position.

Included Accessories

• Connection cable of about 10 m with plug and connection terminals
• Surface mount junction box (IP 55)
• Threaded clamp Ø 40-60 mm
• 4×50 mm stainless steel round head screws and 6×30 mm wall plugs for wall mounting
