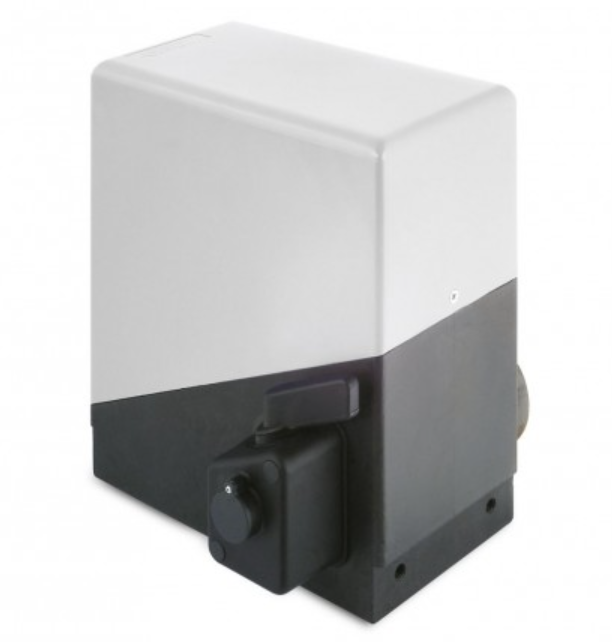

GIBIDI 99012...9L PASS 1221 Irreversible Gear Motor For Sliding Gates

GIBIDI 99012...9L PASS 1221 Irreversible Gear Motor For Sliding Gates

MT Code
GBD_99012...9L
Manufacturer Code
99012...9L
Brand
GIBIDI
GIBIDI
extra discount
Description
Without equipment, with SF end board
,
irreversible electromechanical
gearmotor at 230 Vac and 380 VAC/three-phase for large and weighted sliding gates (up to 2,500 kg) suitable for
intensive use.

EASY TO INSTALL
Control unit in an optimal position for the installer. Encoder technology for self-learning of parameters. Possibility of adjustments on the horizontal and vertical axes
.

QUIET AND ROBUST
Made with large gears made of heat-treated steel and in a complete oil bath (1 kg of oil). Painted aluminum body that also guarantees reliability over time
.

PERFORMANTE
Special engines in oil baths for excellent performance even with heavy use, versions with a two-disc mechanical clutch. New irreversible and anti-slip gear unit
.

TECHNOLOGICAL AND SAFE
Built-in control unit equipped with all safety inputs, integrated encoder for easy programming and for adjusting anti-crush sensitivity. The highest level of safety, as required by EN 12453
.

DESIGN
The most compact in its category thanks to the horizontal direct grip motor, only 14 cm thick
.

Use: INTENSIVE
Frequency of use: 90%
Motor supply: 230 Vac - 50/60 Hz
Absorbed power: 700W Degree of protection:
IP55 Speed:
150 MM/S (9 M/MIN) - Z=16 M4
Max torque: 50 Nm Torque adjustment: MECHANICAL/ELECTRONIC Speed adjustment:
YES Max. door weight:
1,200 Kg Operating temperature: -20°C +60°C Thermal protection:
140°C Lubrication: GBD PH-02 OIL (1 Kg
) Operator weight:
15 Kg
Data Sheet
Codice Produttore 99012...9L
Brand GIBIDI
Download
