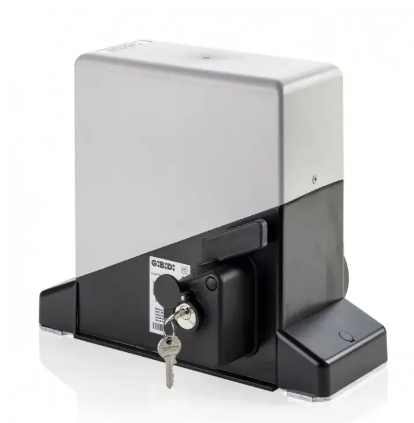

GIBIDI 927006...9N PASS 621 Irreversible Gear Motor For Sliding Gates

MT Code: GBD_927006...9N
Manufacturer Code: 927006...9N
Brand: GIBIDI

Description

Without equipment, with windscreen board

irreversible electromechanical 230 VAC

gear motor for medium-sized and weighted sliding gates (up to 800 kg) suitable for residential and condominium

use.

EASY TO INSTALL

Control unit in an optimal position for the installer. Possibility of adjustments on the horizontal and vertical axes

QUIET AND ROBUST

Made with large gears, heat treated and in a complete oil bath. Painted aluminum body that guarantees reliability over time

PERFORMANTE

Special engines in oil baths for excellent performance even with heavy use, versions with a two-disc mechanical clutch. New irreversible and anti-slip gear unit

TECHNOLOGICAL AND SAFE

Built-in control unit equipped with all safety inputs, integrated encoder for easy programming and for adjusting anti-crush sensitivity. The highest level of safety, as required by EN 12453

DESIGN

The most compact in its category thanks to the direct horizontal motor, only 10 cm thick

Use: INTENSIVE

Frequency of use: 0.6

Motor supply: 230 Vac - 50/60 Hz

Absorbed power: 350W Degree of protection:

IP55 Speed:

160 mm/s (9.6 m/min) - Z=16 M4

Max torque: 20 Nm Torque adjustment: ELECTRONIC Speed adjustment:

YES Max. door weight: 600 Kg Operating temperature:

-20°C +60°C Thermal protection:

140°C Lubrication: GBD PHD OIL Operator weight:
