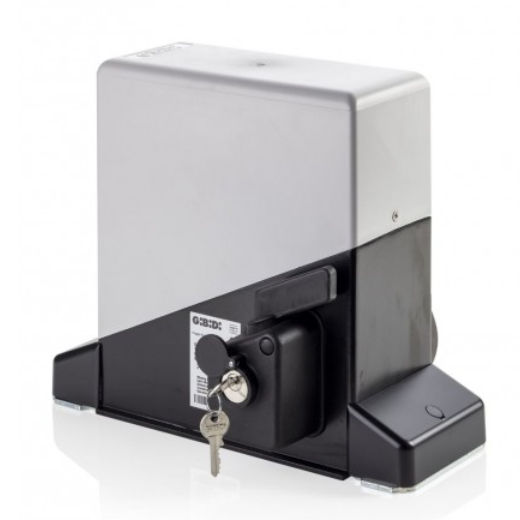

GIBIDI 927708A..9/L PASS 841E

The motor includes only: 1 n. Motor, running end, integrated SC230E control panel, which enables features such as deceleration and anti-crush.

The kit includes: 1 n. Motor, integrated control board, 1 n. integrated radio receiver, 2 n. Remote controls and 1 n. Pair of Photocells, Finecorsa.

NB: Rack, foundation plate and other accessories must be purchased separately.

Note: This version of the PASS comes without a clutch.

230Vac irreversible electromechanical operator without mechanical friction. The PASS can be used to automate medium-sized sliding gate doors up to a maximum weight of 800 kg, for residential and commercial use

EASY TO INSTALL

The position of the control unit is optimized for the engineer, while the unit itself offers the possibility of adjusting both the horizontal and vertical axes.

QUIET AND STRONG

The PASS is made with robust, thermally treated gears, entirely immersed in an internal oil bath. The operator structure is made of coated aluminum which makes the equipment durable and reliable

PERFORMANCE

The engine is also immersed in an oil bath to provide the best possible performance, even in case of intense use. The latest PASS gears have been made to be irreversible

TECHNOLOGICALLY ADVANCED

The integrated SC230E control unit is equipped with inputs for the required safety devices, has integrated encoder technology for efficient self-learning and offers the technician the opportunity to adjust the anti-crush sensitivity: all as indicated in the EN12453 standard

PROJECT

With its direct horizontal motor measuring only 100 mm deep, the PASS is one of the most compact operators in its category
