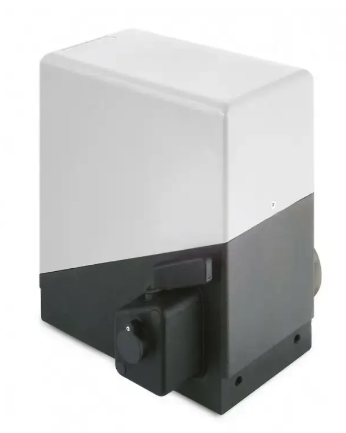

GIBIDI K939025/BF PASS2500 30VAC/three-phase, without control panel, only with end-of-stroke card

GIBIDI K939025/BF PASS2500 30VAC/three-phase, without control panel, only with end-of-stroke card

MT Code
GBD_K939025/BF
Manufacturer Code
K939025/BF
Brand
GIBIDI
Satel open day
Description
380 Vac - three-phase, without equipment, with an irreversible electromechanical
gearmotor board at 230 Vac and 380 VAC/three-phase for large sliding gates and weight (up

to 2,500 kg) suitable for
intensive use.

EASY TO INSTALL
Control unit in an optimal position for the installer. Encoder technology for self-learning of parameters. Possibility of adjustments on the horizontal and vertical axes
.

QUIET AND ROBUST
Made with large gears made of heat-treated steel and in a complete oil bath (1 kg of oil). Painted aluminum body that also guarantees reliability over time
.

PERFORMANTE
Special engines in oil baths for excellent performance even with heavy use, versions with a two-disc mechanical clutch. New irreversible and anti-slip gear unit
.

TECHNOLOGICAL AND SAFE
Built-in control unit equipped with all safety inputs, integrated encoder for easy programming and for adjusting anti-crush sensitivity. The highest level of safety, as required by EN 12453
.

DESIGN
The most compact in its category thanks to the horizontal direct grip motor, only 14 cm thick
.

Use: INTENSIVE
Frequency of use: 70%
Motor supply: 380 Vac/Three-phase
Absorbed power: 750W Degree of protection:
IP55 Speed:
150 mm/s (9 m/min) - Z=16 M4
Max torque: 90 Nm Torque adjustment: MECHANICAL Speed adjustment:
NO Max. door weight: 2,500 Kg Operating temperature:
-20°C +60°C Thermal
protection
:
140°C Lubrication: GBD PH-02 OIL (1 Kg
) Operator weight:
15 Kg
Data Sheet
Codice Produttore K939025/BF
Brand GIBIDI
