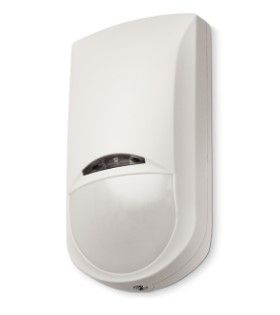

AVS ELECTRONICS 1131134 JET PA WS 4 Two-way passive infrared radio sensor with anti-masking

Fresnel infrared lens sensor with a range of up to 15 meters.

Complete with a look down lens for vertical detection under the sensor, anti-masking with active IR, accelerometer to detect the tear from the wall and immunity to animals up to 12 kg.

The new low-consumption technology and the lithium battery guarantee reliability and efficiency over time.

- Passive infrared with aspherical lens and look down mirror

- IR coverage: 15 meters, 90° aperture, 7 planes and 41 sectors with sealed optics

- PET IMMUNITY

- Anti-masking with active IR, adjustable detection distance

- Accelerometer for tear and disorientation signaling

- Use: indoor

- Frequency: FM 868 MHz

- Multi frequency

- Bidirectional

- Radio range: up to 700 m in the open field

- Communication: alarm - tampering - battery - survival - sensor model - battery voltage

- Operating temperature

- Simplified programming: self-learning in the control unit

- Setting operating parameters directly from the control unit, from the PC or from the MY AVS MANAGER APP

- Power supply: 1 3.6 V 2.2 Ah lithium battery

- Autonomy: 2 years by activating the reduced consumption function

- Dimensions (LxHxD): 65 x 120 x 39 mm

- Compatibility: RAPTOR control panels, XSAT WS4, IMQ-INCERT CERTIFICATION EN 50131 Grade 2
