SATEL PERFECTA32WRLLTESETA PERFECTA 32-WRL LTE control panel + LTE antenna + OPU-4P container

PERFECTA 32-WRL LTE control panel + LTE antenna + OPU-4P container

PERFECTA alarm panels are designed to protect small and medium-sized premises such as apartments, small homes, small offices, small commercial activities, etc. They provide a safety standard compliant with EN 50131 Grade 2. The alarm panels feature quick installation, simple setup and easy, intuitive operation using remote controls. The alarm system functions can also be controlled remotely using the PERFECTA CONTROL mobile application or using the MPT-350 remote controls.

The control unit allows you to create a wireless or hybrid alarm system. Bidirectional communication with the PRF-LCD-WRL wireless keypads and with the MSP-300 R) sirens is carried out on the 433 MHz frequency. MICRA series wireless detectors and MPT-350 radio controls can also be used in the system. All this allows for easy and rapid expansion of the system without the need to lay new wiring.

A GSM module with support for LTE data transmission is used in the PERFECTA 32-WRL LTE alarm control unit. This allows interaction with the PERFECTA CONTROL application for IOS and ANDROID, with support for PUSH notifications, remote system configuration from the PERFECTA Soft program, event reporting (e.g. to a surveillance receiving station) , voice messaging, SMS control and audio verification (listening to sounds in protected rooms). The control panel supports two nano-SIM cards to ensure constant connectivity: if communication with the first operator's network fails, the second SIM is automatically activated.

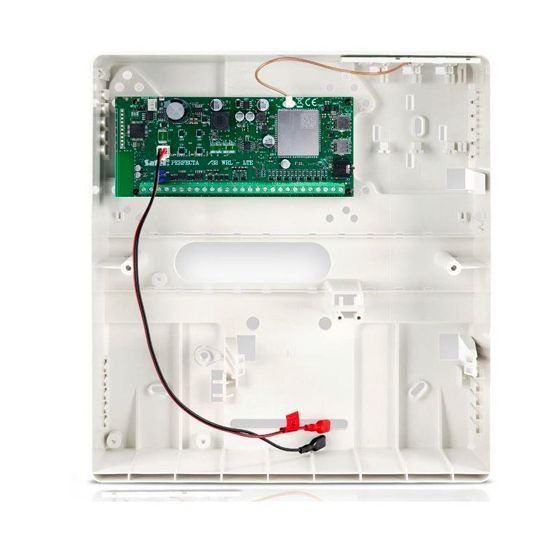

The control panel's electronic board is equipped with 8 zones and 4 wired outputs. Their number can be increased by connecting the INT-E zone expansion module and the INT-O or INT-ORS output expansion modules. This allows you to expand the system by adding more detectors, sirens and actuators (to control the garage door, roller shutters, garden sprinklers).

The alarm control unit allows the system to be divided into two partitions with a choice of three arming modes (day, night, total). Each zone can be assigned to one or both partitions.

The system can be configured in two ways: from a computer with the PERFECTA Soft program (locally via RS-232 cable (TTL), remotely – via LTE *), as well as from the keyboard, using key sequences in the programming menu.
