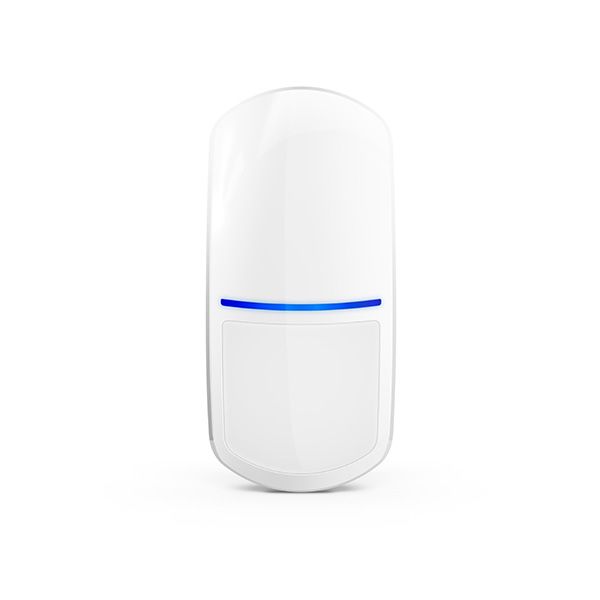

SATEL SLIM-PIR-PRO PIR motion detector, detection sensitivity adjustment with OPT-1 remote control

PIR motion detector, detection sensitivity adjustment with OPT-1 remote control (antimask active on IR, GRADE 3, BRACKET-D joint included)

SLIM-PIR-PRO is the indoor PIR detector of the SLIM series with active antimask on the IR and EN50131 Grade 3 certification. It has a detection area of 20 m x 24 m with an angle of 90°.

The standard lens can be replaced with the LR long-range lens (30m x 3.6m) and the CT curtain lens (22m x 2m).

The PRO models are equipped with an active anti-masking function via infrared radiation. Any attempts to deactivate the devices by covering the lenses (for example with tape, paint or clear varnish) will be reported.

SLIM-PIR-PRO is convenient and practical to install. Opening the housing is quick and simple, without the need to remove the closing screw.

The electronic board can be extracted without acting on the terminals. The wires are fixed to a removable terminal block onto which the electronic board is inserted. The detector has built-in 1.1kΩ, 4.7kΩ and 5.6kΩ balancing resistors.

All adjustments (including LED brightness and color settings) can be performed manually by acting on the electronic board, or via the OPT-1 remote control.

The detector is supplied with a BRACKET-D bracket, with internal cable routing and anti-tear tamper, which allows the detector to be rotated 35° degrees vertically and 90° horizontally.

Characteristics:
