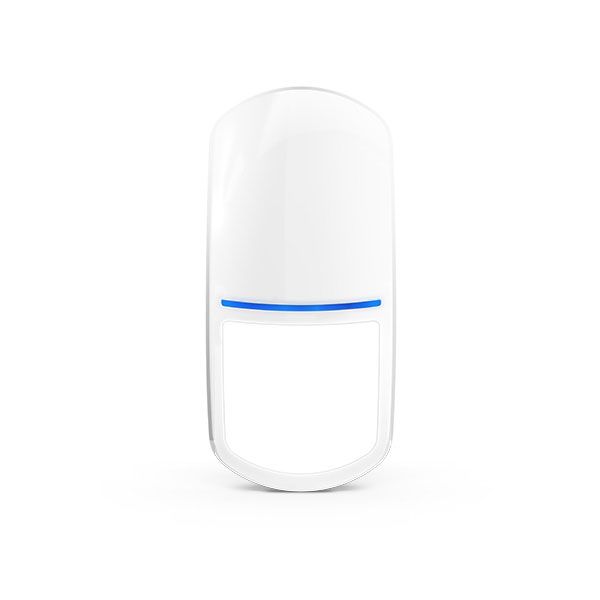

SATEL SLIM-DUAL-LUNA-PET PIR + MW dual technology motion detector with emergency light and Pet Immunity (up to 20 kg)

PIR + MW dual technology motion detector with emergency light and Pet Immunity (up to 20 kg) - adjustment of detection sensitivity with OPT-1 remote control

SLIM-DUAL-LUNA-PET is the indoor dual technology detector (PIR and microwave in K band 24GHz) of the SLIM series with white lighting LEDs. It has a detection area of 12 m x 13 m with an angle of 90°.

PET models are immune to the movement of animals weighing up to 20 kg. Thanks to this, these detectors can monitor rooms where, for example, a small dog is present, without triggering unwanted alarms.

SLIM-DUAL-LUNA-PET is convenient and practical to install. Opening the housing is quick and simple, without the need to remove the closing screw.

The electronic board can be extracted without acting on the terminals. The wires are fixed to a removable terminal block onto which the electronic board is inserted. The detector has built-in 1.1kΩ, 4.7kΩ and 5.6kΩ balancing resistors.

All adjustments (including LED brightness and color settings) can be performed manually by acting on the electronic board, or via the OPT-1 remote control.

It is equipped with a set of white LEDs for lighting, which can be used for example as a night courtesy lamp or an emergency light source in the event of a power failure.

On LUNA models it is possible to remotely switch between two sensor sensitivity levels. This allows you to change motion detection settings, for example based on the status of the area to which the detector is assigned. If the zone is disarmed, lighting can be turned on in response to the slightest movement. When the area is armed, the detector can use the settings to eliminate unwanted alarms.

Characteristics:
