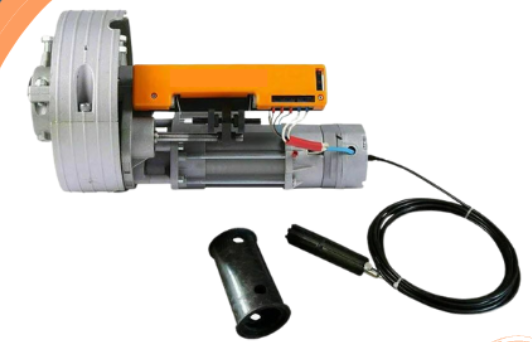

ABTECNO APE-118/0180 PL 180 GEAR MOTOR FOR SHUTTERS WITH ELECTRIC BRAKE

ABTECNO APE-118/0180 PL 180 GEAR MOTOR FOR SHUTTERS WITH ELECTRIC BRAKE

MT Code
ABT_APE-118/0180
Manufacturer Code
APE-118/0180
Brand
ABTECNO
Satel open day
Description

Power supply 230 Vac - 50 Hz


Extremely simple assembly, even on existing shutters,


thanks to the property of the device to break down into two parts to be rejoined on the spring holder axis.


Easily adjustable built-in limit switches.


The reducer is irreversible with the closing shutter blocked, but there is a relative manual release.


Electric brake is factory fitted.



Body cast in aluminium, mechanics in steel alloys.


Permanent lubrication with lithium grease


The motor is suitable for 60-48mm axles, for 42-33 mm axles you need to request the adapter.


External crown diameter 200mm, 220mm adapter included.


KIT COMPOSITION:


n° 1 Electromechanical actuator, cast aluminum structure, high-performance electric motor.


Power supply 220 V. 50 Hz. Weight 8.3 kg


n° 1 Electric brake with release knob


n° 1 Installation accessories



n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN

Data Sheet
Codice Produttore APE-118/0180
Brand ABTECNO
