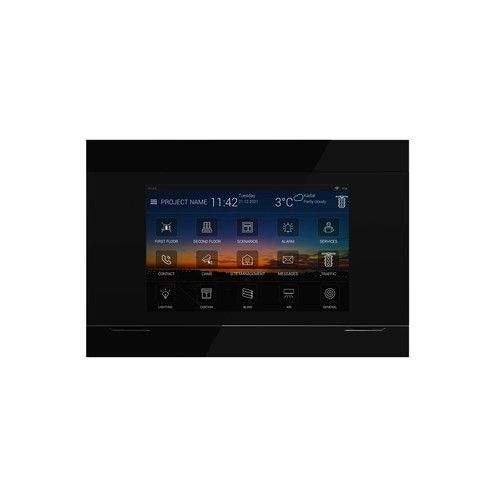

EELECTRON TP70I12KNX-PL-1 KNX 7-inch CAPACITIVE TOUCH PANEL - CONNECTIVE

The KNX EELECTRON TP70I12KNX-GL-1 touch panel is a versatile and powerful control unit for KNX-based home and building automation installations. This device is characterized by a 7-inch capacitive TFT display, integrated in a version with an all-glass front.

Key Features

The TP70I12KNX offers a wide range of features to manage and monitor KNX devices efficiently.

Navigation and Configuration

• Simple and intuitive navigation through floor plans and zones.
• Up to 512 configurable pages, with up to 8 control functions per page, allowing more than 4,000 functions in total.
• Customizable background images.
• User-editable scenes.
• Weekly hours.

Monitoring and Security

• Alarm monitoring with event log.
• Simulation of presence with day and night hours.
• Logical functions (logic gates, comparators, timers, etc.).

Environmental Control

• Four independent thermostats.
• Four multifunction inputs, individually configurable as binary inputs or temperature probes.

Multimedia Features

• Video intercom function with full duplex audio and echo cancellation.
• IP camera monitoring.
• Built-in stereo speakers and digital microphone.

Remote Control and Integration

• Remote control from smartphone, tablet and PC.
• Integrated KNX bus coupling unit.
• Real-time clock (RTC) with backup battery.

Energy Consumption and Touch Management

• Very low energy consumption.
• Touch gestures: 4 directional gestures + multitouch gesture.

This KNX touch panel is designed to offer complete and intuitive management of automation installations, making it an ideal option for industry professionals.
