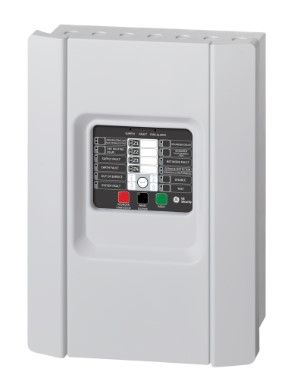

ARITECH FIRE 1X-F4-10 Programmable microprocessor fire detection unit equipped with 4 non-expandable zones

Programmable microprocessor fire detection unit equipped with 4 non-expandable zones. It has 4 supervised siren outputs and 2 relay outputs for alarm and fault signaling. Three levels of password access and single-operator maintenance functionality. 2 A power supply unit. 2 x BS127 internal batteries. Built in accordance with EN54 standards - CPD

General
The 1X-F fire control units offer state-of-the-art architecture in configurations that must satisfy a simple solution for small and medium-sized conventional applications. They are characterized by an attractive contemporary design adaptable to any type of environment. The front panel with its slightly curved lines offers a distinctive touch. The operator controls reside inside a black lexan membrane.

These systems, quick to configure, and compatible with multiple series of detectors and accessories, offer versatility and features appreciated both by the end customer and by installation and maintenance companies.

The 1X-F4
control unit is a conventional fire detection unit. It is supplied in the national language, with 4 zones that support up to 20 devices per line, and has 4 supervised relay outputs dedicated to controlling ringtones and reporting fire alarms. It is also equipped with 2 clean contact relay outputs, reserved for general alarm and fault conditions, and two inputs configurable by the user for

control and monitoring.

Optional modules The control
panels support 2 types of relay output modules, one with 4 clean contact relay outputs, and one with 4 supervised outputs. With these relay output modules, the control unit can be expanded to a maximum of 8 additional outputs

.

Approvals & compliance This series of products has obtained the following approvals:

• EN 54:2, EN 54:4 and CE compliance • CPD certificate • NEN2535, NBNS21-100 and BS5839-1 compliance • Complies with the WEEE directive • Respects the RoHS directive

Classification specifications: 3K5 of IEC

60721-3-3
