SENSITRON S2155PN-LD PROPYL ALCOHOL detector. 4-20 mA. 0-100% LFL

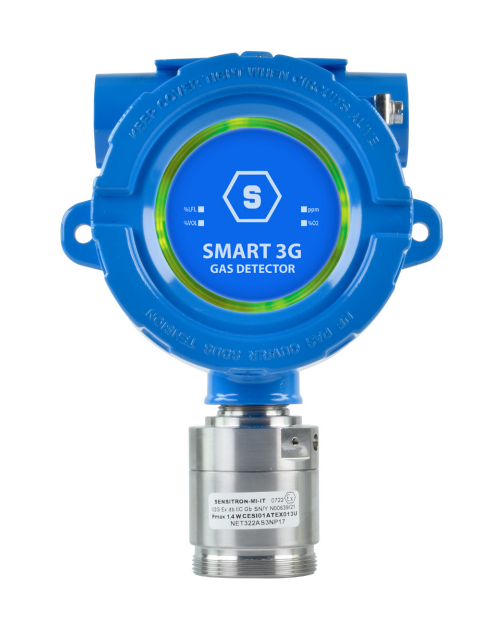

The SMART3G-C2-LD detector is suitable for installation in industrial areas and zones ATEX; thanks to the explosion-proof housing it can be installed in zone 1 and, if equipped with the dust adapter, in zone 21.

The sensitive element is housed in the stainless steel head. For the detection of flammable substances the catalytic sensor is used, which combines excellent linearity up to 100% LFL with fast response times.

The detector has a 12-24 Vdc power supply, at the output it has a 4-20 mA signal and three relay. RS485 serial communication can be added as an option.

The case is made of aluminum with a total size of 145 x 187 x 108 mm. All the inlets are threaded with 3/4” NPT thread. The SMART3G-C2-LD is equipped with a crown of LEDs to ensure immediate display of the detector status.
