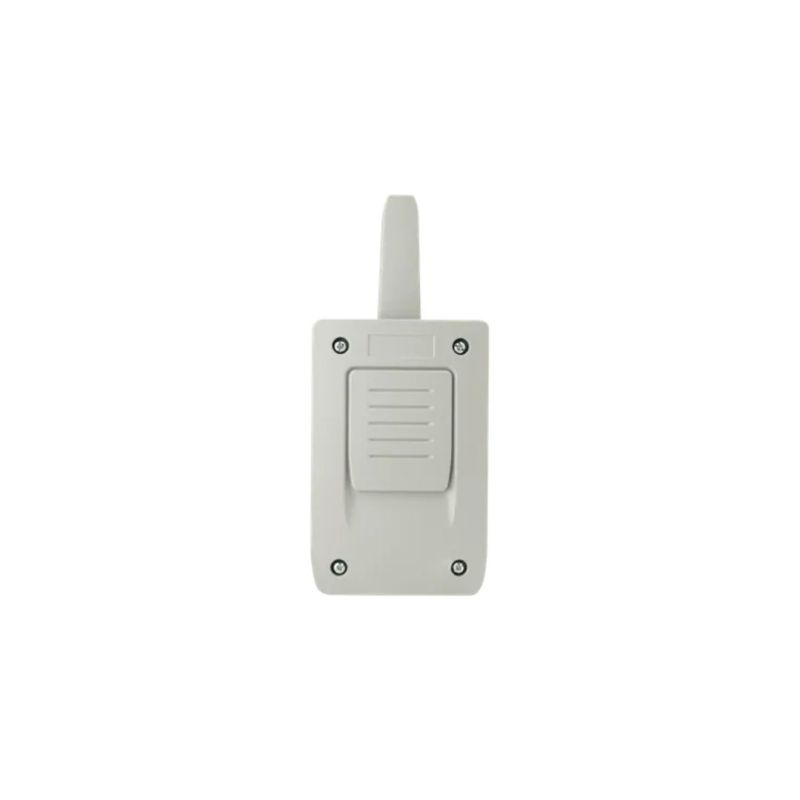

ABTECNO JCM - 1003180 RADIOBANDRU

Receiver in box for security band

2 relay outputs with selectable operating mode. They can behave as if they were a safety band or a closed safety contact.

Range (guaranteed) 10 metres.

Memory 6 RADIOBAND/TBX (3 in relay 1, 3 in relay 2).

By programming, a transmitter can activate the 2 relays simultaneously.

12/24Vac/dc power supply.

Consumption in rest/operation 18 mA/80 mA.

Self-test input 2 inputs 0/12/24 V ac/dc with selectable polarity.

Operating temperature from -20° C to +5° C.

IP54 watertight (with IP65 glands).

Minimum time between two activations of A TEST (in compliance with the R&TTE Directive) 7 min.

Box dimensions: 82 x 190 x 40 mm.
