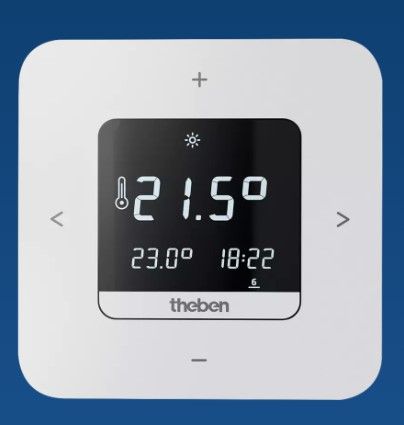

THEBEN 8120200 RAMSES 812 top3
- MT Code
- THE_8120200
- Manufacturer Code
- 8120200
- Brand
- THEBEN
Description
- Operating voltage 230 V AC
- Frequency 50 Hz
- Contact type Closing contact
- Switching power 10 A at 250 V AC, cos φ = 1, with
- 250 V AC, cos φ = 0.6
- Temperature setting range 2°C ... 30°C
- Security setting fields
- antifreeze
- 6°C ... 10°C
- Temperature indication accuracy of 0.1 °C
- Quartz hourly base
- Schedule Weekly schedule, Schedule
- daily, Holiday program, 3
- basic programs
- Memory locations 42
- External entrances 1
- Types of regulation Pulse width modulation,
- Hysteresis regulator
- Regulation period 5 – 30 min
- Proportional band ±0.2 – ±5 K
- Setting accuracy ≤ ± 0.2 K
- Mode of action Type 1 B according to EN 60730-1
- Switching output Potential-free, not for SELV
- Suitable for SELV No
- Switching hysteresis ±0.2 – ±1 K
- Reserve accuracy at 25 °C ≤ ± 1 sec/day (quartz)
- Power reserve 4 hours
- Mounting type Wall mounting (also possible
- on built-in box)
- Protection type IP 40
- Insulation class II according to EN 60 730-1
Data Sheet
| Codice a barre | 8000002612832 |
|---|---|
| Codice Produttore | 8120200 |
| Brand | THEBEN |
| Discount category | THE-A |
