FAAC 105083 RAPID KIT 800KG 24V SAFE&GREEN

MT Code: FAA_105083
Manufacturer Code: 105083
Brand: FAAC

Description

RAPID KIT 800KG 24V SAFE&GREEN

24V electromechanical automation Max door weight 800 kg Max speed 18 m/min.

Complete FAAC sliding door automation kit. FAAC C721 24V gearmotor for sliding gates weighing up to 800 kg, extremely compact and robust, characterized by very high performance (> 80%) and continuous use. Equipped with a safety encoder, so when the obstacle is blocked, the gate reverses the maneuver, a wide selection of operating logics and parameters, thanks to the E721 control unit, installed inside the motor, equipped with display programming, slowdown in both maneuvers and quick connection for 3-pin receivers (XF 433 or XF 868).

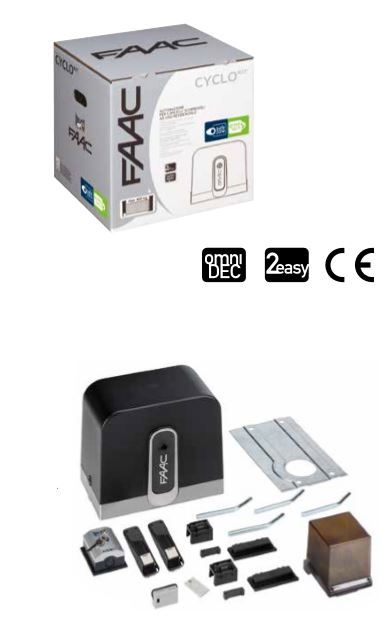

The package includes: 1 FAAC C721 109321 gearmotor 1 E721 63002485 electronic board 1 Ground fixing plate 1 Magnetic opening and closing terminal unit 1 Pair of photocells in BUS XP 20B D 785103 1 Flashing XLED 410029 1 XK10 B BUS 401304 + 71275101 1 single-channel receiver with connection to XF 433 SLH 787831 a two-channel XT2 433 SLH LR 787007 remote control AC 1 Safety certifications, instructions and user and maintenance manual
