ABTECNO APE-550/1004 RETROFIT SLIM FLASHLIGHT FROM 12V TO 230V LED
- MT Code
- ABT_APE-550/1004
- Manufacturer Code
- APE-550/1004
- Brand
- ABTECNO

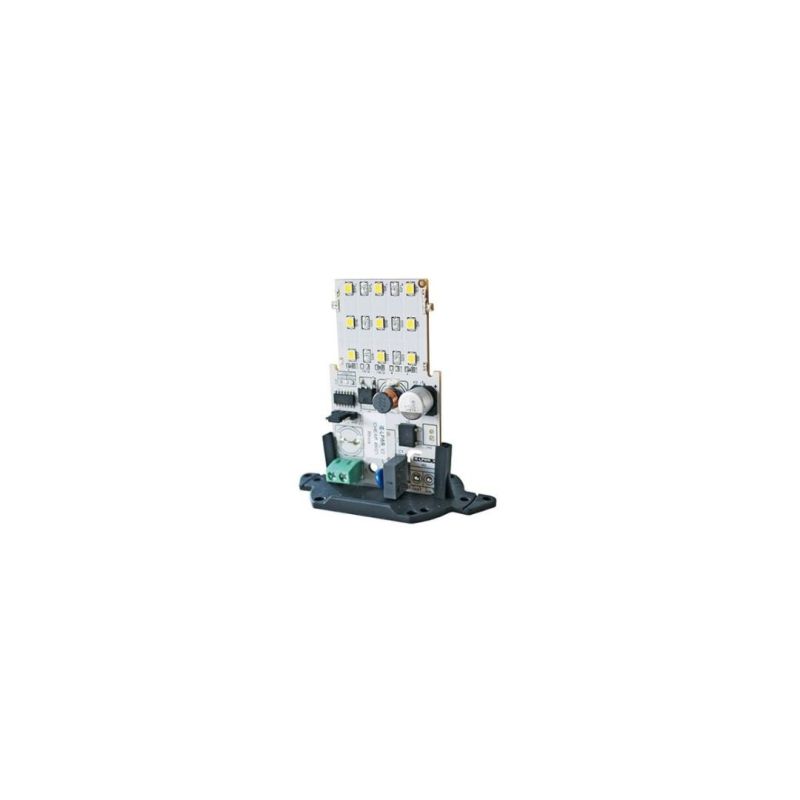

Universal replacement LED board for flashers
Replacing the old incandescent light bulb with the RETROFIT board allows you to obtain high energy savings (around 93%) thanks to the 6 LEDs with high luminous efficiency and low consumption, with a power consumption < 2 watts. The Retrofit board also guarantees a longer life of the flashing light: the estimated life of the LEDs is, in fact, approximately 50 times longer than traditional incandescent lamps.
Installation is easy thanks to the universal mounting base compatible with all the most popular brands of flashers and the universal power supply, 12V – 24V and 230V, allows for great versatility in different installations.
Thanks to jumper JP1 it is possible to select the type of light, fixed or flashing.
Buzzer (acoustic signal) optional.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | APE-550/1004 | |
| Brand | ABTECNO | |
| Nome Prodotto | MEGA RETROFIT SLIM | |
| Alimentazione | 12 Vdc ÷ 48 Vdc, 12 Vac ÷ 230 Vac | |
| Massimo assorbimento a 12Vdc | 125 | mA |
| Massimo assorbimento a 48Vdc | 33 | mA |
| Massimo assorbimento a 12Vac | 80 | mA |
| Massimo assorbimento a 230Vac | 23 | mA |
| Consumo | 1,6 (12Vdc/48Vdc), 1 (12Vac), 5,3 (230Vac) | W |
| Luminosità | 110 | lm |
| Temperatura d'utilizzo | -20°C, +60°C | °C |
