PASO ACRJ45 RJ45 interface/TERMINAL BLOCK

RJ45 interface/TERMINAL BLOCK

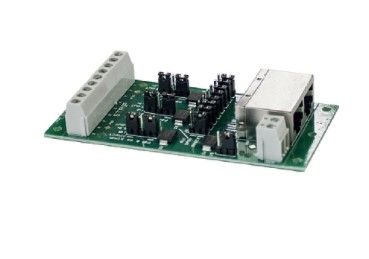

The ACRJ45 module is ideal for cabling and installations with cables that use RJ45 connectors, allowing easy and immediate cascade connections, terminal derivations with the possibility of interrupting the bus and, if necessary, inserting additional audio signals and power supplies. It is equipped with 2 female RJ45 terminals to allow the continuity of the cascade connection and screw terminals for connecting individual conductors. Unlike the ACRJ45/M-DIN board, the ACRJ45 module, in addition to the normal function of an RJ45 adapter with terminals, allows, through special jumpers, different usage settings based on the different configuration requests of the various systems: - interruption of the cascade bus, opening the connection of the various pins in the RJ45 IN socket. - insertion of an analog audio signal from screw terminals to the secondary input of the PMD series amplifiers on a CAT5 line. - insertion of an additional power supply for preamplified bases (e.g.: B711 and B53 series) thanks to protective diodes on the power pin. - parallel connection of 2 “UNIT” inputs (AW5600/AX3500 series amplifiers) for B711 bases, with power supply protection. ACRJ45 boards can be remotely installed inside electrical junction boxes. The ACRJ45 -DIN model, on the other hand, is equipped with a plastic box that allows a practical and quick installation on standard DIN rails.
