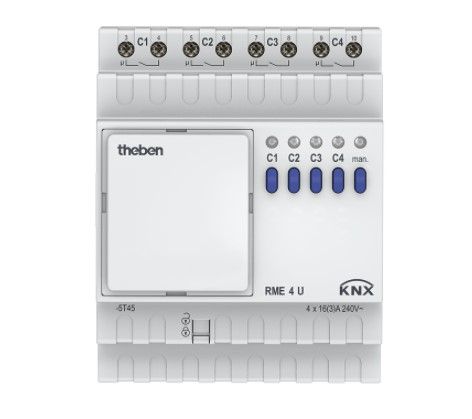

THEBEN 4930228 RME 4 U KNX

Function Description

• 4-channel switching actuator MIX2
• MIX2 expansion module
• For expansion up to 12 channels
• Up to 2 MIX or MIX2 expansion modules can be connected to a basic module
• Luminaire and KNX bus module can be replaced independently
• Removable KNX bus module that allows the replacement of devices without reprogramming
• Manual commissioning and use of the switching actuators are also possible without a KNX bus module
• Switching status indication with LED for each channel
• Manual control on the device (even without bus voltage)
• Adjustable properties: e.g. switching, delayed switching, pulse function
• Connections, type of contact (opening/closing) and participation in central commands such as permanent ON, permanent OFF, centralized arming and scene storage/recall
• Switching functions: e.g. ON/OFF, pulse, ON/OFF delay, staircase lights with warning
• Logical links: e.g. locking, AND, unlocking, OR
