FAAC 104250 S2500I INTEGRATED OPERATOR

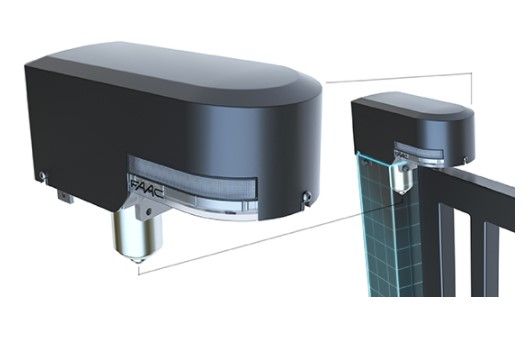

S2500I INTEGRATED OPERATOR

24V electromechanical actuator

Maximum width of a single door: 2 - 2.5 m (with electric lock) - Maximum door weight: 250 kg - Modern and exclusive design adaptable to any architectural context - Integrated flashing light perfectly visible from inside and outside the property - Integrated adjustable mechanical shutters to define the stopping points at the end of the run when opening and closing (optional)

S2500I includes: an electromechanical actuator, actuator-hinge fixings, a grease pack and an unlocking key. S2500I hinge includes: an upper hinge consisting of a plate, gear, fasteners to the pillar, joint and bushing connecting to the door, 2 integrated LED blinkers and an unlocking lock.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 40W Max torque: 320Nm Max angular speed: 10°/s Maximum leaf weight: 250 Kg Maximum door opening angle: 165° Ambient operating temperature: -20°C ÷ + 55°C Degree of protection: IP X4 Weight: 7.9 Kg (actuator) - 3.3 Kg (hinge) - 1.8 Kg (cover) Dimensions (LxDxH): 340 x 160 x 150 mm Electronic equipment: not including integrated mechanical stops when opening and closing: optional Continuous use time (ROT): Continuous at 55°C Encoder: Absolute Magnetic BUS Maximum width: 2 m (2.5 m with electric lock) Square column size: 100×100, 120×120, 150×150 mm
