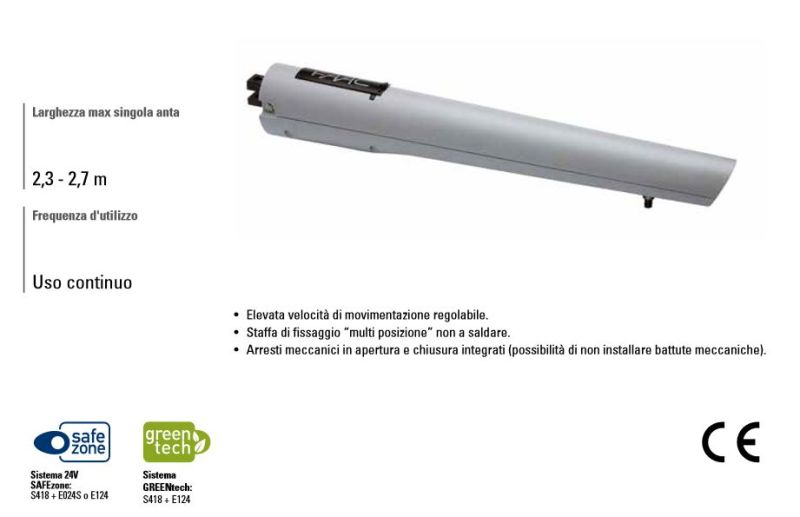

FAAC 104301 Handy S418 24V Swing Gate Actuator Motor Operator

Handy S418 24V Swing Gate Actuator Motor Operator

24V electromechanical actuator Maximum width of a single door: 2.3 - 2.7 m (with electric lock) Frequency of use: Continuous use - High adjustable speed of movement. - Non-soldering “multi-position” fixing bracket. - Integrated mechanical stops when opening and closing (possibility of not installing mechanical stops). S418 includes: an electromechanical actuator, installation accessories, an unlocking key.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 35 W Maximum thrust force: 1800 N Max rod speed: 37 mm/s (with E124) Stem stroke: 350 mm (390 mm without stops) Maximum door opening angle: 110° Ambient operating temperature: -20°C ÷ + 55°C Degree of protection: IP54 Weight: 6 Kg Frequency of use: continuous use Maximum leaf width: 2.3 m (2.7 m with electric lock) Fixing brackets: Rear connection screw-on and adjustable — screw-on and adjustable front attachment Dimensions (LxPxH): 823 x 104 x 137 mm Electronic equipment: Not included
