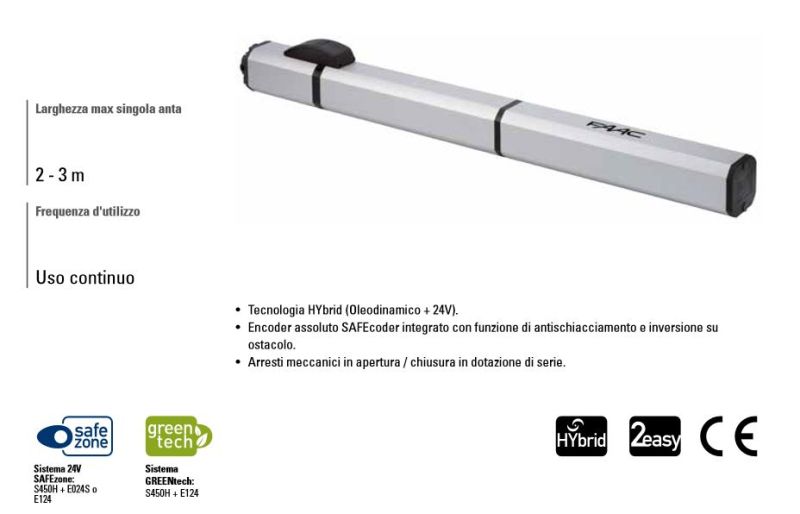

FAAC 104100 S450H CBAC 24V OPERATOR

S450H CBAC 24V OPERATOR

24V hydraulic actuator Maximum width of a single leaf: 2 — 3 m Frequency of use: Continuous use - HYbrid Technology (Hydraulics + 24V). - Integrated SafeCoder absolute encoder with anti-crush and reverse obstacle function. - Mechanical stops when opening or closing as standard. S450H includes: a hydraulic actuator, installation accessories, an unlocking key.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 60 W Maximum thrust force: > 5000 N Max rod speed: >25 mm/sec Stem travel: 311 mm Maximum opening angle of the sash: 110° Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP55 Weight: 6.5 Kg Maximum leaf width: 2 m Oil type: FAAC HP OIL Fixing brackets: rear multi-position screw-on — front adjustable screwdriver Dimensions (LxDxH): 1131 x 85 x 119 mm Electronic equipment: Not included
