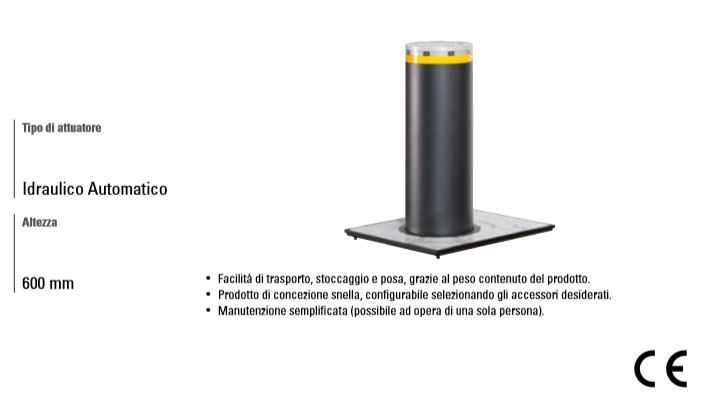

FAAC 116505 J200/H600 HA Retractable Bollard - BRUSHED STAINLESS STEEL

J200/H600 HA Retractable Bollard - SATIN STAINLESS STEEL

Type of actuator: Automatic Hydraulic - Height: 600 mm - Easy transport, storage and installation, thanks to the low weight of the product. - Product with a lean design, configurable by selecting the desired accessories. - Simplified maintenance (possible by a single person). - Simplified installation, thanks to the self-supporting structure that does not require the use of a sump. Packaging: AISI 316L stainless steel cylinder with satin treatment hydraulic lock in a high position (in case of power failure) unlocking key for emergency lowering (1 pc.) support structure to cement cataphoresis treatment (no need for the use of wells)

TECHNICAL CHARACTERISTICS: Actuator type: Hydraulic actuator Cylinder height above ground: 600 mm Cylinder diameter: 200 mm Cylinder treatment type: Satin finish Reflective band height: 25 mm Standard reflective band color: Orange Rise time: ~5 s Descent time: ~7 s Emergency descent device: YES (optional) Emergency descent time: ~7 s Lifting obstacle detection device: YES (optional) Unlocking device: YES Network supply voltage: 220-240V ~ 50/60Hz Max power: 230 W Degree of protection hydraulic unit: IP67 Type of use: Residential use Ambient operating temperature: -15 °C/+55 °C Ambient operating temperature with heater: -25 °C/+55 °C Load class (EN 124): C250 (25t) Total weight: 90 Kg
