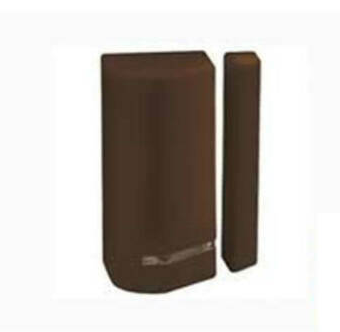

RWX73F8BR00A Lighsys Agility 2-channel bidirectional brown contact Risco
- MT Code
- RSC_RWX73F8BR00A
- Manufacturer Code
- RWX73F8BR00A
- Brand
- RISCO
Description
Features:
- Bidirectional Communication
- Supervised internal reed contact
- 300m Radio Range (free area)
- Selectable termination for external input: NO, NC, DEOL Tamper protection:
- opening and removal
- Programmable response time Two
- separate transmission channels to protect two zones with a single sensor
- Compatible with Agility3 and Agility4
- Battery type: lithium CR123 3V
- Current consumption: 22μA at rest Frequency:
- RWX73F86800A 868.65 MHz Transmission inhibition: 2.5 minutes Supervisory transmission: 0 to 255 minutes Modulation:
- ASK Battery life: 3 years (depending on use) Unit dimensions: 32 x 35 x 72 mm Magnet size: 16 x 11 x 72 mm RF immunity
- :
- compliant with EN50130-4 Operating temperature: from 0°C to 40°C
Data Sheet
| Codice Produttore | RWX73F8BR00A |
|---|---|
| Brand | RISCO |
