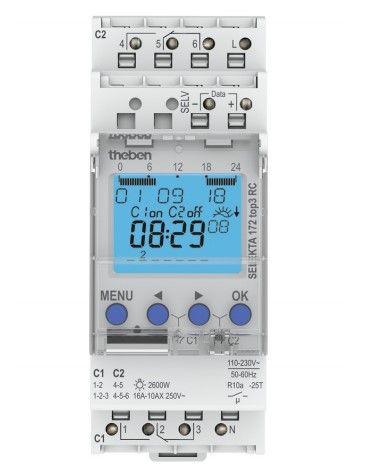

THEBEN 1720330 SELEKTA 172 top3 RC INT. ASTRO 2CAN RC

THEBEN 1720330 SELEKTA 172 top3 RC INT. ASTRO 2CAN RC

MT Code
THE_1720330
Manufacturer Code
1720330
Brand
THEBEN
THEBEN
CORSO KNX Aprile
Description

Description of operation

- Astronomical time switch with weekly program

- Time synchronization by connecting an external GPS or DCF antenna,

with additional GPS positioning for the astronomical program

- 2 channels

- Programming via App possible

- Optionally secure transmission via Bluetooth Low Energy

OBELISK top3

- Maximum handling safety, time programs can be

transmitted to the watch from the App only when the OBELISK top3 Bluetooth is on

inserted into the watch

- 100% compatible with top2 (when transferring programs

switching via OBELISK to the PC, the OBELISK software must be

installed starting from version V3.8.3.4)

- 3 special programs (small annual program)

- 3 custom twilight intervals plus adjustable offset (sunset,

dusk, darkness)

- Astro Pulse

- 84 memory locations

- The button can be connected (switching preselection

external, expiration timer)

- The switch can be connected (permanent switching ON or

OFF)

- Astronomical function (automatic calculation of sunrise and sunset times

all year long)

- Offset for adapting sunrise and sunset times

- Programmable location data via coordinates or city list/

regions

- Programmable fixed ON/OFF switching (e.g. interruption

night)

- Simulation of switching times (calculated astronomical times and

programmed ON/OFF switching)

- Reversible Astro mode (evening ON - morning OFF or evening OFF -

morning ON) or can be deactivated

- Clamps with DuoFix quick coupling

- For 2 conductors

- Wire or cable (with or without sleeve)

- Wire diameter: 0.5 - 2.5 mm²

- Activation button to detach the connector

- Textual guide for the operator present on the display

- Preset date and time

- Full functionality without connection to the network

- Interface for OBELISK top2 memory card (programming from

PC)

Data Sheet
Codice Produttore 1720330
Brand THEBEN
