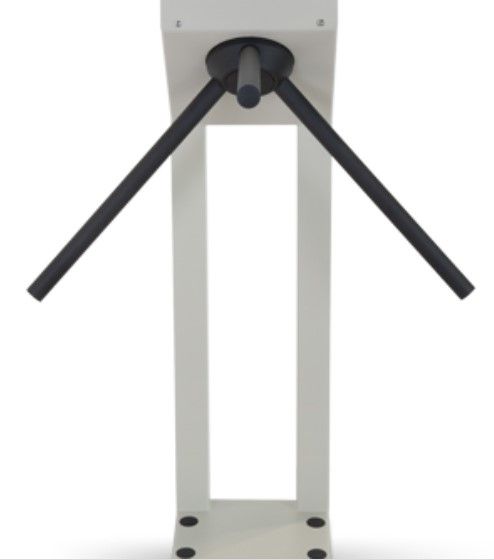

PLEXA PASSATOR S3 Simple compact electromechanical tripod turntable

Compact simplified electromechanical tripod turnstile in internally painted sheet Bidirectional three-arm electromechanical turntable in powder-coated steel suitable for indoor installations in access control systems for offices - banks - stations - airports - etc.? Is the possibility foreseen? of installation on board any access control device of the K and PLW Plexa lines (keyboards - magnetic readers - proximity readers)? - biometric- via radio- etc.) to be connected to the units? KC- PLW or NET Plexa logics. Does it require the? use of two relay outputs? independent for bidirectional operation. Useful opening light for 600 mm passage. Speed? Passing through up to 60 people min in mode? ? Free passage? And 30 people min in mode? ? controlled gate?. Operation in mode? selectable mono or bidirectional (requires l? use of two relay outputs? independent for bidirectional operation). Operation in mode? single pass multiple pass selectable free pass. Automatic alignment of the tripod in the closed position after each step. Automatic system to prevent the? inversion of the enabled direction of rotation of the tripod without hindering its automatic repositioning if you give up transit after starting the maneuver. Automatic turntable locking in case of refusal of passage (5 sec). Alarm input for automatic tripod unlocking. Manual locking mechanism with safety key. Optional mechanical panic system for manual push release with the pull-down of the tripod arms. Operator panel complete with function keys and LEDs for automatic manual management. Double traffic light signal on board for bidirectional signaling of the authorized or denied sense of opening.
