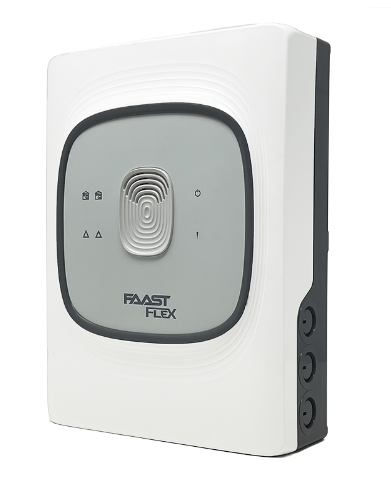

THERMOSTICK FLX-010 1-CHANNEL ASPIRATION SMOKE DETECTOR

1-channel aspiration system designed for applications with sensitivity, configuration and very early alarm detection requirements, such as: warehouses, cold storage (operating temperature and sampled air down to -40C°), elevator/ lift compartments, false ceilings, subfloors, electrical and transformation cabins. Complete with a high sensitivity smoke detector, metal filter, aspirator and flow monitoring system. It allows high levels of flexibility through modular piping networks (up to 270m with derivations). Possibility of automatic configuration via DIP switch or advanced. Quick installation with the possibility of reversing the orientation of the machine (straight/upside down). LED interface for immediate status indication. 3 relay outputs (Action, Alarm, Fault). 24Vdc power supply - Maximum absorption 400mA. IP40 degree of protection. Certification according to EN54-20. Class A (5 holes), Class B (15 holes), Class C (32 holes). Vds certification.
