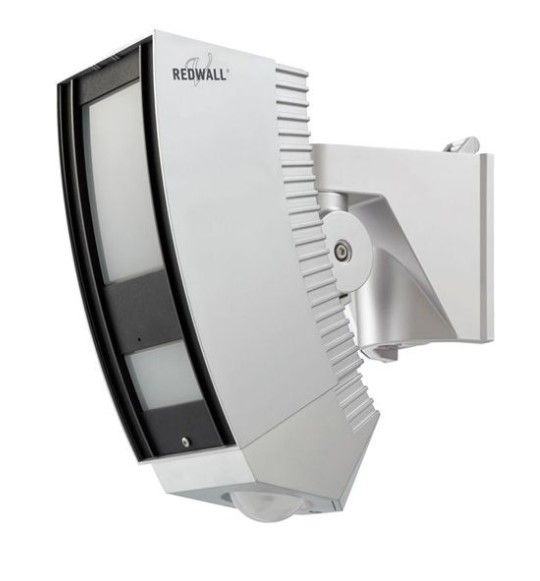

OPTEX OXZS100IP SIP-100-IP Double PIR for outdoor

Product information

REDWALL SIP is a series of long range outdoor PIR sensors designed to work in conjunction with CCTV systems to create a reliable security solution for businesses. Redwall SIP motion sensors are very stable outdoors with a high detection rate and minimal false alarms; they are ideal for intrusion detection systems with event activation. SIP-100 is a wired model with a range of 100 x 3 m (Length x Width), ideal for protecting long and narrow areas such as the area around a fence, a building or an alley.

Designed to activate CCTV systems

The REDWALL SIP series connects to PTZ or fixed cameras to activate the CCTV system in the event of an intrusion. The SIP-100/5030 has three independent detection zones, far, near and crawl, each with its own sensitivity setting to activate a camera preset and allow local security or remote monitoring station personnel to properly observe the problem.

Resistant to atmospheric agents and vandalism

REDWALL SIP motion sensors are suitable for use in harsh outdoor environments; sensitivity can be automatically adjusted to ambient temperature and light, and the main unit is IP65 rated. The SIP long range intrusion detectors are vandal-proof models, with a polycarbonate case, anti-masking function and accelerometer to detect any tampering with the sensor.

Applications

• Buildings
• Perimeter
• Access

Main features

• Intelligent external PIR, with advanced detection algorithm
• Designed to activate CCTV systems
• 3 independent detection zones with 3 far/near/swipe outputs
• Active infrared anti-masking and vandal resistance
