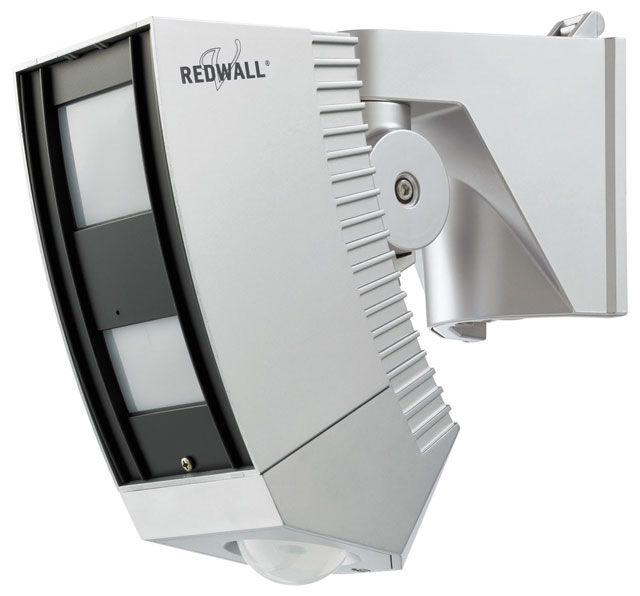

OPTEX OXZS40105 SIP-4010/5 Double PIR for outdoor m40x10

SIP-4010/5 is a motion sensor designed for event-activated intrusion detection systems. Activate video transmission systems and PTZ camera control. Like all Redwall sensors, this long-range PIR features an intelligent detection system that uses environmental data, such as temperature and light, to automatically adjust sensitivity. The SIP-4010/5 is a wired model with a 40 m by 10 m (length x width) detection range with an additional 6 x 9 m wide crawl detection area covering the area under the sensor.

Designed to activate CCTV systems. Resistant to atmospheric agents and vandalism

The REDWALL SIP series connects to PTZ or fixed cameras to activate the CCTV system in the event of an intrusion. The SIP-4010-5 features two independent detection zones, far and near, each with its own sensitivity and output setting, to activate a camera preset and allow local security or remote monitoring station personnel to observe the problem correctly.

Resistant to atmospheric agents and vandalism

REDWALL SIP motion detectors are suitable for use in difficult outdoor environments; sensitivity can be automatically adjusted to ambient temperature and light, and the main unit is IP65 rated. SIP outdoor PIRs are vandal-proof models equipped with a polycarbonate case, anti-masking function and accelerometer to detect intentional movement of the sensor.

Applications

• Buildings
• Access

Main features

• Intelligent external PIR, with advanced detection algorithm
• Designed to activate CCTV systems
• 3 independent detection zones with 3 far/near/swipe outputs
• Active infrared anti-masking and vandal resistance
