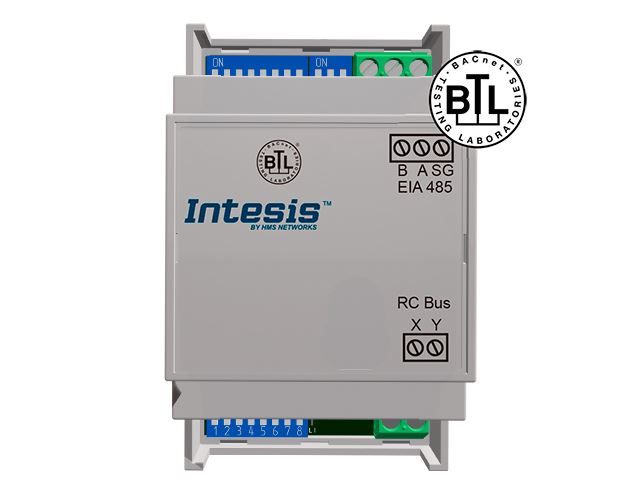

INTESIS INBACMHI001R100 Sistemi FD e VRF Mitsubishi Heavy Industries all'interfaccia BACnet MS/TP - 1 unità

Mitsubishi Heavy Industries FD and VRF systems at the BACnet MSTP interface

The Mitsubishi Heavy Industries-BACnet gateway enables fully bi-directional communication between Mitsubishi Heavy Industries FD and VRF air conditioners and BACnet MSTP networks.

CHARACTERISTICS
• The BTL brand guarantees full interoperability with BACnet devices.
• Supports BACnet MS/TP only.
• Configuration from on-board DIP-switch.
• Quick and easy installation (connect and set up the DP-SW).
• External power not required.
• Simultaneous control of the AC unit via manufacturer remote control and BACnet MS/TP.
• Small dimensions 93 x 53 x 58 mm.
• Mountable on DIN rail, wall or even inside the indoor unit in some AC models.
• Abstraction of air conditioning unit properties and functionality as fixed BACnet objects.
• The occupancy function saves energy. The costs relating to HVAC systems in a building are among the highest and this type of function allows them to be reduced.
• Total control and monitoring of the AC unit from BACnet, including internal variables of the AC unit, operating hours counter (for checking filter maintenance) and error indication.

Description
The gateway is wired directly to the indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature set point, monitoring of errors, alarms and some internal variables. The product can be installed and configured in a very short time. It's just a matter of wiring the gateway to the AC unit and configuring the DIP-SW accordingly. No configuration and power software required.
