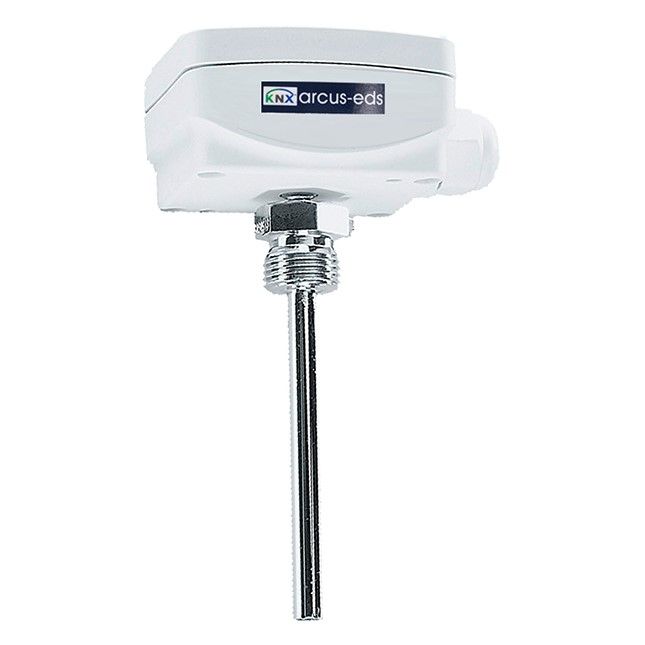

ARCUS-EDS 30511025 SK10-TC-ETF2 300mm

The ARCUS-EDS 30511025 product is a high-precision temperature sensor designed to be integrated into KNX automation systems.

Technical characteristics

This sensor is characterized by a series of technical specifications that make it ideal for applications in different environments.

Temperature Range

The ARCUS-EDS 30511025 sensor can measure temperatures between -35°C and +105°C, with extension options up to -50°C and +180°C for specific applications.

Resolution and Accuracy

The sensor resolution is 0.02°C, with an accuracy of class B, ± (0.3°C+0.005*T).

Food and Consumption

The sensor operates with a KNX Bus supply voltage between 21 and 32 VDC, with a power consumption of about 240 mW at 24 VDC.

Environmental Resistance

The operating temperature of the KNX module is between -25°C and +80°C, while the storage temperature is between -25°C and +80°C. The permissible relative humidity is 0-100% non-condensing.

Protection and Connectors

The sensor has IP54/65 protection and 2-pin KNX connectors (red and black).

Measurement

The sensor measures temperature only, with high accuracy and resolution.

Dimensions and Material

The KNX module is made of plastic, with dimensions of 72 x 64 x 40 mm.

Applications

This sensor is particularly suitable for installation in ventilation ducts and other environments where precise temperature measurement is required.

• Integrated with KNX systems for centralized management of environmental conditions.
• Usable in a wide range of applications, from residences to large commercial and industrial buildings.
• Easy to install and configure thanks to compatibility with ETS software starting with version 4.
