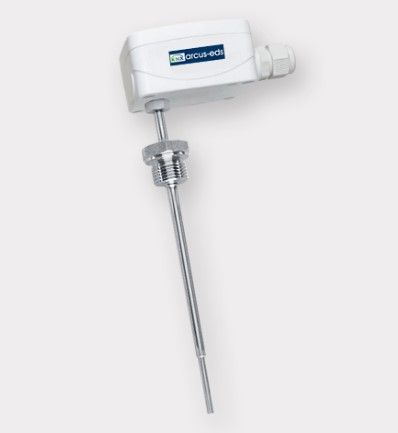

ARCUS-EDS 30511036 SK10-TC-ETF7, 250mm

ARCUS-EDS 30511036 Product Description

The ARCUS-EDS 30511036 product, referred to as SK10-TC-ETF7, is a high-precision temperature sensor designed for temperature control applications in KNX systems. This sensor is available in different lengths, including 250 mm.

Technical characteristics

The SK10-TC-ETF7 sensor uses a PT1000 sensor with a length of 250 mm and an extended V4A shaft, ensuring a very fast response to changes in temperature.

• Measurement Range: -30°C to +150°C
• Resolution: 0.02°C
• Accuracy: Class B, ± (0.3°C + 0.005*T)
• Operating Temperature: -25°C to +80°C
• Storage Temperature: -25°C to +80°C
• Protection Class: IP54/65

Control functions

The SK10-TC-ETF7 sensor offers different control functions for heating and cooling applications, which can be combined. These include:

• Setpoints for Comfort, Standby, Economy and Protection
• Changing setpoints using KNX objects
• Storage of minimum and maximum temperatures
• Heat and frost alarm
• Temperature limits
• Fan control via external inputs
• Adaptation for setpoints and maximum temperatures
• Controller output 0... 100% or programmable PWM for thermal actuators
• Valve flushing function

Logic and Inputs/Outputs

The sensor includes four logic blocks for the logical connection between internal and external signals, with 10 associated inputs/outputs. Available logical functions include “AND, OR, NOT, XOR” for binary values and “+ - *” functions for 8-bit values.

In addition, the sensor supports heating and cooling requests as additional signals.
