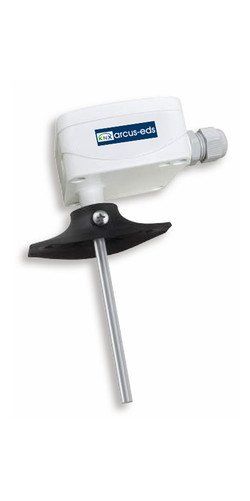

ARCUS-EDS 30511040 SK10-TC-KTF1, 200mm

The ARCUS-EDS 30511040 product, called SK10-TC-KTF1, is a temperature sensor designed to be integrated into KNX home and industrial automation systems.

Technical characteristics

• Temperature Range: -35°C to +105°C (with PVC material) and -50°C to +180°C (with Silicon material)
• Resolution: 0.02°C
• Accuracy: Class B, ± (0.3°C + 0.005*T)
• Operating Voltage: 21-32 VDC (KNX bus voltage)
• Power Consumption: Approximately 240 mW at 24 VDC

Environmental Conditions

• KNX Module Operating Temperature: -25°C to +80°C
• KNX Module Storage Temperature: -25°C to +80°C
• Ambient Humidity of the KNX Module: 0-100% R.h non-condensing

Functionality and Integration

• Integrated Control: The sensor includes integrated control functions for heating and cooling applications.
• Connection to the KNX Bus: Equipped with an integrated coupler bus, it does not require auxiliary power.
• Connection Points: KNX 2-Pole Clamps (red/black)
• Protection Class: IP54/65

Applications

The SK10-TC-KTF1 sensor is ideal for temperature monitoring in various environments, including HVAC systems, and can be combined with other control functions for comfort, standby, economy and protection.
