ARCUS-EDS 30511043 SK10-TC-KTF1, 400mm

ARCUS-EDS 30511043 Product Description

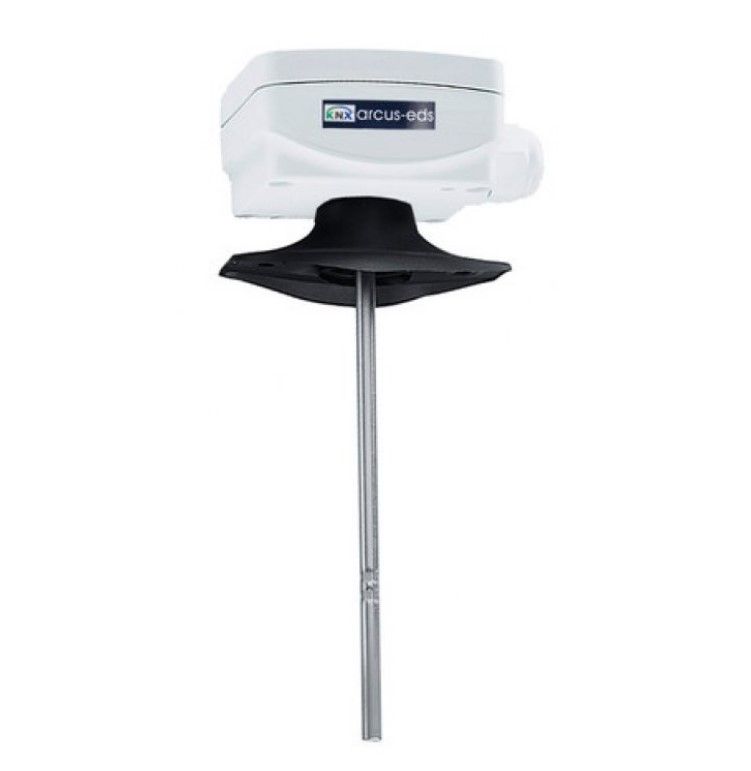

The ARCUS-EDS 30511043 product, referred to as SK10-TC-KTF1, is a temperature sensor for air channels and ducts, designed to measure and control indoor air temperature in heating and cooling applications.

Technical characteristics

• Temperature Range: -30.. +150°C
• Resolution: 0.02°C
• Accuracy: Class B, ± (0.3°C+0.005*T)
• Operating Voltage: KNX Bus Voltage 21.. 32VDC
• Power consumption: approx. 240mW (at 24VDC)

Environmental Conditions

• KNX Module Operating Temperature: -25.. +80°C
• KNX Module Storage Temperature: -25.. +80°C
• KNX Module Ambient Humidity: 0.. 100% r.h Non Condensing

Control functions

• Temperature Control: Control functions for heating and cooling applications (can be combined)
• Setpoint temperatures: Selection of comfort, standby, economy and protection temperatures via KNX HVAC objects
• Changing the Setpoint: Modifying the Setpoint using KNX Objects
• Storage of Minimum and Maximum Temperatures: Storage of minimum and maximum temperatures
• Heat and Frost Alarm: Alarm functions for heat and frost
• Temperature Limits: Configurable temperature limits
• Fan Control: Fan control via external inputs
• Adjustment of Setpoint and Maximum Temperatures: Adaptation of Setpoint and Maximum Temperatures
• Controller Output: Controller output 0... 100% or programmable PWM for thermal actuators
• Valve Flushing Function: Valve Flushing Function
• Second Temperature Controller as Auxiliary Controller: Second Temperature Controller as Auxiliary Controller

Logic and Inputs/Outputs

• Logic Blocks: Four logical blocks for the logical connection between internal and external signals
• Logic Inputs/Outputs: 10 associated logic inputs/outputs
• Heating and Cooling Request: Available heating and cooling request signals
• Logical Functions: “AND, OR, NOT, XOR” logical functions for binary values and “+ - *” functions for 8-bit values
• Conditional Event Forwarding Function: “=” function for conditional forwarding of events

Physical Characteristics

• Sensor Length: 50.. 400 mm
• Sensor Diameter: Ø 6mm
• Sensor material: PT1000
• Protection Class: IP54/65
