ARCUS-EDS 30532066 SK10-THC-CO2-RPFF-MMF

MT Code: ARC_30532066
Manufacturer Code: 30532066
Brand: ARCUS-EDS

ARCUS-EDS 30532066 Product Description

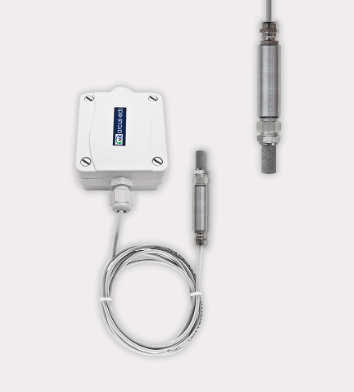

The ARCUS-EDS series SK10-THC-CO2-RPFF-MMF room pendulum sensor is designed to precisely measure indoor air parameters, including temperature, humidity and CO2 concentration.

Key Features

Simultaneous measurement of temperature, humidity and CO2 concentration.
Integrated sensors within the sensor body for accurate and reliable measurement.
Compact and versatile design, suitable for installation in various environments.

Technical Details

Available materials: sandblasted square aluminum, black sandblasted square aluminum, anodized round aluminum and black anodized round aluminum.
KNX interface for easy integration with building automation systems.
Easy setpoint configuration and adjustment using front buttons or control objects.

This sensor is ideal for HVAC applications and for air management in buildings, ensuring a healthy and comfortable indoor environment.

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002627560
Codice Produttore	30532066
Brand	ARCUS-EDS
Temperatura di esercizio	-10 .. +60	°C
Range di misurazione temperatura	-25 .. +80	°C
Range di misurazione umidità	0 .. 100	% r.H
Range di misurazione CO2	0 .. 40000	ppm
Lunghezza della sonda	120	mm
Cavo di collegamento	PVC 2m
Dimensioni custodia	72 x 64 x 40	mm
Grado di protezione	IP54/65
