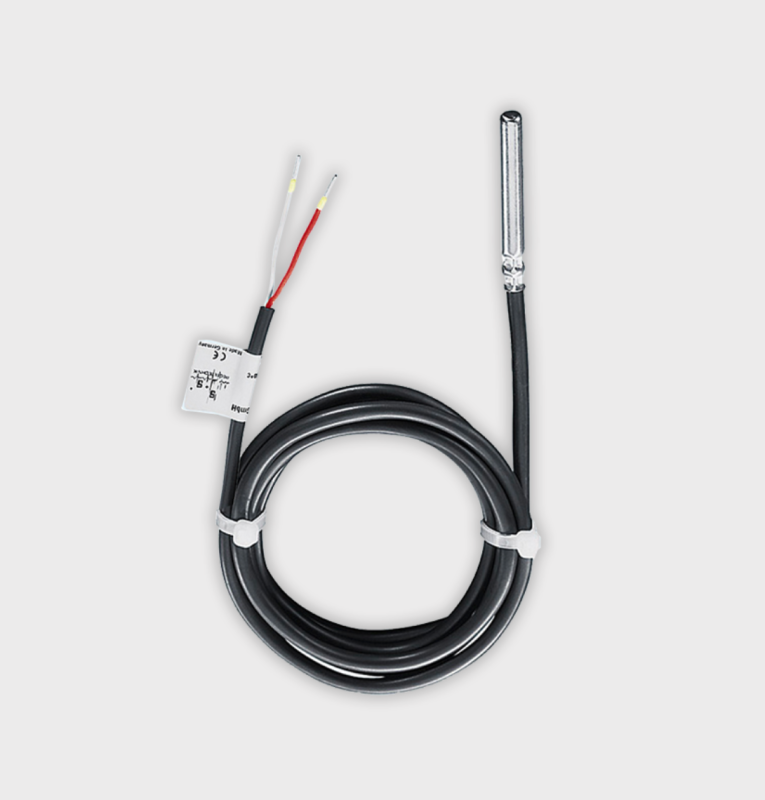

ARCUS-EDS 90101302 SK30 - PT1000

ARCUS-EDS 90101302 Product Description

The ARCUS-EDS 90101302 product, called SK30 - PT1000, is a specialized device for the control and measurement of environmental parameters, designed to be integrated into the KNX automation system.

Technical characteristics

This device is equipped with a series of features that make it ideal for climate control and environmental comfort applications.

• Temperature Measurement: Uses a PT1000 sensor to measure temperature with an accuracy of ± 0.3°C and a resolution of ± 0.01°C in the range of -20°C to +80°C.
• Power supply: It operates with a voltage of 21-32 VDC and has a power consumption of about 240 mW at 24 VDC.
• Operating Environment: It can operate in a temperature range from -20°C to +80°C and in a range of relative humidity of 0-95% without condensation.

Control Features

The device includes various control functions that allow precise and flexible management of the environment.

• Temperature and Humidity Control: Performs decentralized control of temperature and humidity, adapting to the specific needs of the environment.
• Binary Inputs and Outputs: It has four binary (floating) inputs and outputs that can be configured as outputs (LED/Beeper).
• Logic Blocks: It includes four logical blocks for the logical connection between internal and external signals, supporting logical functions such as “AND, OR, NOT, XOR” and arithmetic operations such as “+, -, *”.

KNX integration

The device is designed to be fully compatible with the KNX bus, allowing seamless integration with other KNX system devices.

• Integrated Bus Coupler: It does not require an auxiliary power supply and can be started with the ETS version 4 or higher.
• Electrical Connections: It uses 2-pin KNX terminals (red/black) and has an IP20 protection class.

Physical Characteristics

The device is designed to be installed in a standard and compact manner.

• KNX Module House: Available in square and round versions, with anodized aluminum cover (black) and standard dimensions for recessed installation.
