ARCUS-EDS 30807310 SK80-F-T-PM-10
- MT Code
- ARC_30807310
- Manufacturer Code
- 30807310
- Brand
- ARCUS-EDS

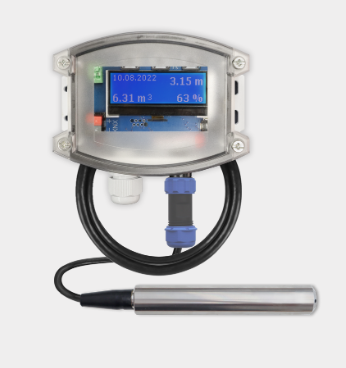

ARCUS-EDS 30807310: Level Measurement System with Hydrostatic Sensor Head and Temperature Recording
The ARCUS-EDS 30807310 level measurement system is designed to measure and adjust the filling levels of water or oil tanks of different shapes and sizes. This product integrates a hydrostatic sensor head that captures the pressure of the water column and calculates the corresponding level.
Key Features
- Maximum Filling Height: 10 meters
- Cable length: 15 meters (with the possibility of extension to 30 meters)
- Temperature Recording: The hydrostatic sensor is equipped with a temperature recording function, providing complete data on the state of the fluid.
Operation
The hydrostatic sensor measures the pressure exerted by the water column and converts it into an electrical signal proportional to the fluid level. This system is particularly suitable for applications where precise control of filling levels is required in tanks of various sizes.
Integration with KNX
The system is compatible with KNX technology, allowing easy integration with building automation systems. This allows for centralized management and precise regulation of fill levels, improving the efficiency and safety of operations.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice a barre | 8000002627685 | |
| Codice Produttore | 30807310 | |
| Brand | ARCUS-EDS | |
| Livello massimo di riempimento | 10 | m |
| Lunghezza del cavo | 15 | m |
| Sensore di temperatura | Con sensore di temperatura | |
| Dimensioni dell'involucro | 120 x 90 x 50 | mm |
| Grado di protezione IP | IP54/65 | |
| Gruppo prodotti | WG 10 |
- Variant 30807000 Sistema di misura SK80-F senza sensore
- Variant 30807205 Versione SK80-F-PM-5 per acqua con livello max 5 m e cavo 10 m (senza sensore di temperatura)
- Variant 30807305 Versione SK80-F-T-PM-5 per acqua con livello max 5 m, cavo 10 m e sensore di temperatura
- Variant 30807105 Versione SK80-F-U-5 con sensore a ultrasuoni (livello max 5 m, cavo 10 m)
- Variant 30807370 Versione SK80-F-T-PMO-5 per olio combustibile con livello max 5 m, cavo 10 m e sensore di temperatura
- Variant 30807380 Versione SK80-F-T-PMO-10 per olio combustibile con livello max 10 m, cavo 15 m e sensore di temperatura
|
