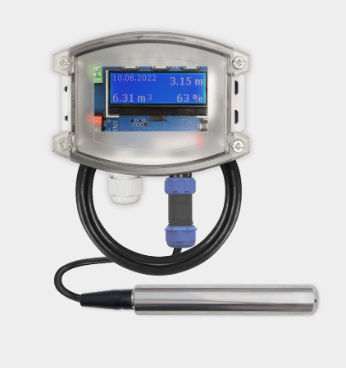

ARCUS-EDS 30807305 SK80-F-T-PM-5

MT Code: ARC_30807305
Manufacturer Code: 30807305
Brand: ARCUS-EDS

The ARCUS-EDS 30807305 level measurement system, referred to as SK80-F-T-PM-5, is designed to measure and adjust the filling levels of water tanks or oil tanks of different shapes and sizes.

Key Features

Integrated with a hydrostatic sensor that detects the pressure of the water column to calculate the maximum level.
Measuring capacity up to 5 meters of filling height.
Cable length of 10 meters, with the possibility of extension.
Equipped with a temperature recording function, allowing a more precise and reliable measurement.

Applications

This system is ideal for installation in industrial and residential environments where it is necessary to monitor and adjust liquid levels precisely. The compatibility with the KNX protocol makes it integrable with domestic and industrial automation systems.

Operation

The hydrostatic sensor measures the pressure exerted by the liquid and converts it into an electrical signal that represents the filling level. Temperature recording adds greater accuracy to measurements, compensating for changes in liquid density due to environmental conditions.

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002627676
Codice Produttore	30807305
Brand	ARCUS-EDS
Livello di riempimento massimo	5	m
Lunghezza cavo	10	m
Sensore di temperatura	Sì
Applicazione	Acqua
Dimensioni custodia	120 x 90 x 50	mm
Grado di protezione	IP54/65
