Industrial Switch, 8x 10/100/1000Base-T POE/POE+,

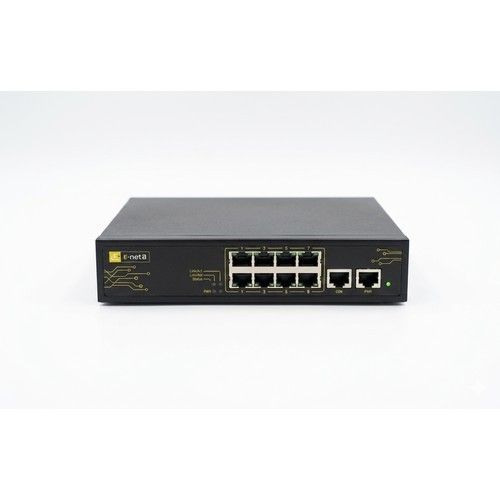

SKILLEYE SNE-SM080002P2IV02 Industrial Switch, 8x 10/100/1000Base-T POE/POE+,

MT Code: SKL_SNE-SM080002P2IV02
Manufacturer Code: SNE-SM080002P2IV02
Brand: SKILLEYE

Managed Industrial Switch, 8 10/100/1000Base-Tx POE+ Ethernet ports (IEEE 802.3af/802.3at) on RJ45 connector + 2 SFP slots (supports SFP/miniGBIC 1000Base-SX modules) and 1 console port. Up to 30W for each POE/POE+ port, max 240W in total. VLAN support, Spanning Tree Protocol, IGMP Snooping, QoS, Multicast. Dimensions (W x D x H): 138 x 108 x 60 mm. DIN rail installation. 48~55 VDC/max 250W full load POE power supply, dual redundancy power with reverse protection

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000003118001
Codice Produttore	SNE-SM080002P2IV02
Brand	SKILLEYE
Tipologia Dispositivo	Switch Industriale Managed
Porte Ethernet PoE+	8	porte
Velocità Porte Ethernet	10/100/1000	Mbps
Slot SFP	2 x 1000Mbps SFP
Porta Console	1
Potenza PoE per porta	30	W
Budget PoE Totale	240	W
Alimentazione	48~55 VDC	VDC
Temperatura di utilizzo	-40 ~ 75	°C
Montaggio	Installazione su barra DIN
