Switch, 24x 10/100/1000Mbps POE/POE+, 4x Combo RJ4

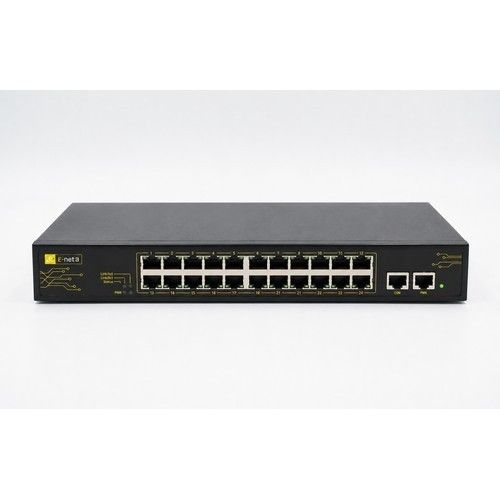

SKILLEYE SNE-SM240404P2V01 Switch, 24x 10/100/1000Mbps POE/POE+, 4x Combo RJ4

MT Code: SKL_SNE-SM240404P2V01
Manufacturer Code: SNE-SM240404P2V01
Brand: SKILLEYE

Managed Layer 2 switch, 24 10/100/1000Mbps POE/POE+ (IEEE 802.3af/802.3at) ports on an RJ45 connector, 4 combo RJ45/mini-GBIC-SFP slots 1000Base-SX ports (ports 25-26-27-28) and 1 console port. Management Web, Console, Telnet interface. VLAN support, Spanning Tree Protocol, QoS, IGMP Snooping. Up to 30W for each POE/POE+ port, max 380W in total. Power supply 100-240VAC, 50 - 60Hz, 400W max. Dimensions (W x D x H): 440 x 280 x 44 mm. Weight 3.65 kg. Operating temperature -10~50 degrees C.

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002968195
Codice Produttore	SNE-SM240404P2V01
Brand	SKILLEYE
Tipologia dispositivo	Switch Managed Layer 2
Numero porte PoE/PoE+	24
Tipo porte PoE/PoE+	10/100/1000Mbps (IEEE 802.3af/802.3at) su RJ45
Numero porte combo / slot SFP	4
Tipo porte combo	Combo RJ45/mini-GBIC-SFP slots 1000Base-SX (porte 25-26-27-28)
Porta console	1
Interfacce di gestione	Web, Console, Telnet
Protocolli supportati	VLAN, Spanning Tree Protocol, QoS, IGMP Snooping
Potenza PoE massima per porta	30	W
Budget PoE totale	380	W
Alimentazione	100-240VAC, 50 - 60Hz
Dimensioni	44	mm
Peso	3.65	kg
Temperatura di funzionamento	-10 ~ +50	°C
