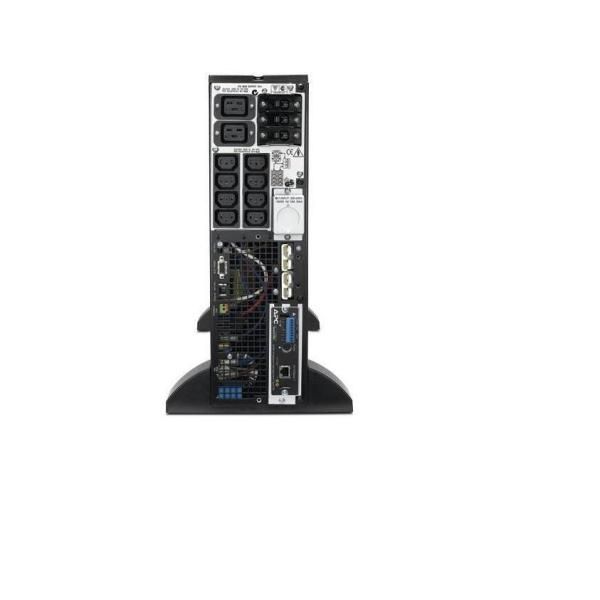

APC UPS SURT6000XLI SMART UPS-RT 6000VA AUTONOMOUS EXTENDED
- MT Code
- APU_SURT6000XLI
- Manufacturer Code
- SURT6000XLI
- Brand
- APC UPS
SMART UPS-RT 6000VA EXTENDED AUTONOMOUS
230 V - Uninterruptible power supply (UPS) - Other Input Voltage: 220 V, 240 V - Main Output Voltage: 230 V - Other Output Voltage: 220 V, 240 V - Nominal power in W: 4200 W - Nominal power in VA: 6000 VA - Output connection type: 8 IEC 60320 C13, 4 IEC Jumpers, 2 IEC 60320 C19 - Number of rack units: 3U - Equipment supplied: CD with software, RS-232 control cable, user manual, SNMP/Web management card - Batteries and operating times: Autonomy (View Graph), Efficiency (View Efficiency Graph), battery type: PB battery, Batteries pre-installed: 2, Typical charging time: 2.5 H, Number of replacement batteries: 1, Battery charging power (watts): 421 W rated, battery life: 3... 5 years, Replacement battery: APCRBC140, SR13KXIET, SR15KDXIET, SR16KXIET, Extendable Run Time: 1 - General: Topology: Double conversion online, Number of power module free slots: 0, Number of power module filled slots: 0, Redundant: No - Physical characteristics: Color: Black, height: 43.2 cm, width: 13 cm depth: 66 cm, product weight: 54.43 kg - Installation: Front side, Mounting preference: Lower, Installation: Not rack-mountable, Two post mountable: 0, USB compatible: No - Input: network frequency: 50/60 Hz +/- 5 Hz auto-sensing, Number of input connectors: 1 Fixed 3-wire connection, input voltage limits: 160... 280 V - Output: Maximum configurable power in VA: 6000 VA, Maximum configurable power (watts): 4200 W, Output frequency (sync to the network): 50/60 Hz +/- 3 Hz adjustable by the user +/- 0.1 sync to the network, Type of waveform: sine output, distortion harmonic: Less than 3%, crest factor: 3:1, Bypass type: Internal bypass ( automatic and manual) - Additional information: Configurable for nominal output voltage at 220:230 or 240 V - Compliance: Product certifications: C-Tick, CE, CSA, GOST, UL listed/CSA, VDE, Reference standards: EN/IEC 62040-1:2019 /A 11:2021, EN/IEC 62040-2:2006 /AC:2006, EN/IEC 62040-2:2018 - Ambient conditions: Ambient temperature: 0... 40 °C, relative humidity: 0... 95% without condensation, Operating altitude: 0... 10000 ft, Storage temperature: -15... 45 °C, Humidity relative storage: 0... 95% without condensation, storage altitude: 0.00... 15240.00 m, acoustic level: 55 dBA, heat dissipation: 1221 BTU/h, IP protection rating: IP20 - Communications & Management: free slots: 0, pre-installed SmartSlot™ cards: Network management card 3 with environmental monitoring, alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm, Emergency Power Off (EPO): Yes - Surge protection and Filtering: Nominal overvoltage energy (Joule): 555 J, Filtering: Full-time multipolar acoustic filter, peak passage 0.3% iee, Closing answer 0, conforms to ul1449 standard - Packaging: Unit of measure package 1: PCE, Number of units per package 1:1, Package 1: height: 34.7 cm, Package 1: width: 60.3 cm, Package 1: depth: 98 cm, Package 1: weight: 63.64 kg - Contractual warranty: Warranty: 2 years with repair or replacement, optional on-site warranties available, optional warranty extensions available.
Codice Produttore | SURT6000XLI |
---|---|
Brand | APC UPS |
