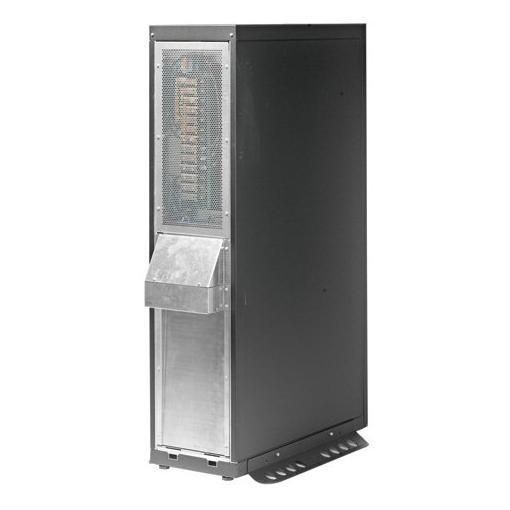

APC UPS SUVTP20KH2B4S SMART-UPS TV 20KVA W/2 BATT.EXP 4

SMART-UPS TV 20KVA W/2 BATT.EXP 4

Main Input Voltage: 400 V 3 phases - Other Input Voltage: 380 V, 415 V - Main Output Voltage: 400 V 3 phases - Other Output Voltage: 380 V, 415 V - Nominal power in W: 16000 W - Nominal power in VA: 20000 VA - Output connector type: Fixed connection 4 wires (3F+T), Fixed connection 5 conductors (3F+N+T) - Connections: Screw terminals - Equipment provided: Battery modules installed, CD with software, Network management board, installed power modules, User manual, Screwed brackets, Installation guide, up included - Battery type: VRLA - Pre-installed batteries: 2 - Empty battery compartments: 2 - Typical charging time: 4 H - Number of replacement batteries: (Divided battery connected to the neutral) +/- 192 V - Battery voltage running out: +/-154 V - Battery charging power (watts): 1243 W rated - Battery life: 3... 5 years - Battery graph comments: Battery times are estimated based on the data provided by the battery manufacturer, under standard environmental conditions, without electrical input and power factor with balanced load = 0.8 output - Extendable Run Time: 1 - Physical characteristics: Color: Black - Height: 149 cm - Width: 52.3 cm - Depth: 84.2 cm - Product weight: 415 kg - Installation: Front side, Mounting preference: No preference, Installation: Not rack-mountable, Two post mountable: 0, USB compatible: No - Input: Network frequency: 40... 70 Hz auto-sensing, Number of input connectors: 1 fixed connection 5 conductors (3F+N+T), Input voltage limits: 304... 477 V, Maximum input current per phase: 27 A, Capacity Switching: 50 A, Input Power Factor at Full Load: 0.98 - Output: Maximum configurable power in VA: 20000 VA, Maximum configurable power (watts): 16000 W, Output frequency (network sync): 47... 53 Hz for 50 Hz nominal sync to the network, 50 Hz +/- 0.1% for 50 Hz nominal not synchronized, Waveform type: sine output, Harmonic distortion: Less than 5% of full scale, Maximum output current: 32 A, Crest factor: 3:1 - Bypass type: integrated maintenance bypass, integrated static bypass - Additional information: for nominal output voltage at 380:400 or 415 Three-phase V - Compliance: Product Certifications: C-Tick, CE, RCM - Environmental Conditions: Ambient Temperature: 0... 40 °C, Relative Humidity: 0... 95%, Operating Altitude: 0... 3333 ft, Storage Temperature: -50... 40 °C, Relative Storage Humidity: 0... 95%, Storage Altitude: 0.00... 15240.00 m, Noise Level: 64 dBA, Heat Dissipation: 3112 BTU/h, IP Protection Grade: IP20 - Communications & Management: Free Slots: 0, Pre-installed SmartSlot Management™ Cards: Network card 2 with environmental monitoring, Alarm: Audible and visible alarms: prioritized by severity, Emergency Power Off (EPO): Yes - Packaging: Pack 1 measurement unit: PCE, Number of units per pack 1:1, Pack 1: Height: 164.3 cm, Width: 106.2 cm, Depth: 65 cm, Weight: 445.91 kg.
