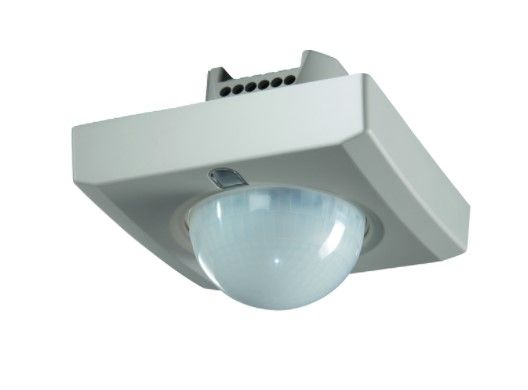

THEBEN 1040374 SPHINX 104-360/2 DIM PLUS PRESENCE DETECTOR DIM 1-10V

Functional description

• Presence detector (PIR)
• 2 channels for classrooms and conference rooms
• Built-in version
• Channel 2 is presence dependent, e.g. for panel lighting with adjustable follow-up time or for HVAC control
• Channel 1 with constant light control (1-10V)
• Lighting control with adjustable brightness switching value and adjustable follow-up time
• You can select an additional pulse function for the combination, e.g. B. with staircase light timers (ELPA), building automation or PLC
• Test function to check the detection area
• Zero crossing circuit
• Automatic lighting control based on presence and brightness
• You can limit the detection area using 3 closed segments
• Mixed light measurement suitable for controlling fluorescent, incandescent and halogen lamps
• Immediate commissioning possible thanks to factory presetting
• Connection option for buttons for manual switching
• Adjustment elements protected against manipulation by a cover
• Fully or semi-automatic: in the “fully automatic” version, the lighting switches on and off automatically based on presence and brightness. Since it is "semi-automatic", ignition must always be done manually; switching off is automatic
