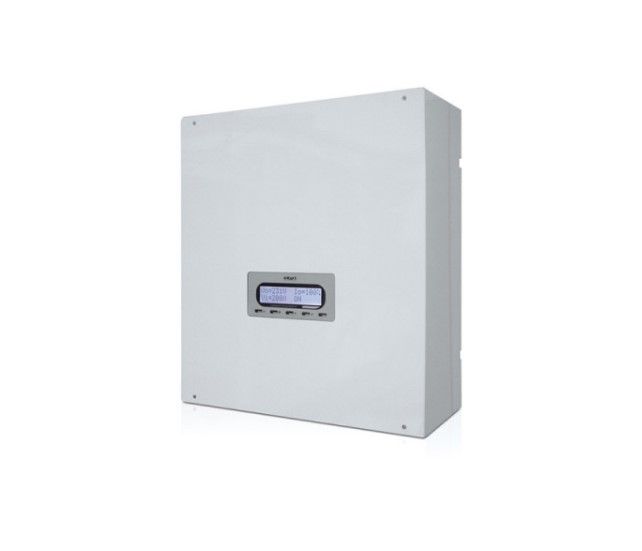

KERT KTREK3 Voltage stabilizer 180-270Vac 3.5 kVA

Voltage stabilizer 180-270Vac 3.5 kVA

Power (W) 3500 Input Voltage Range (Vac) 180 ÷ 270 Input Frequency (Hz) 50 Output Voltage (Vac) 225 ± 5% Output Frequency (Hz) 50 Response Time (ms) 20 Load Power Factor Any Efficiency (%) > 95% Overload 110% 3 min. Overload 150% 5 sec. Harmonic Distortion (%THD) <3Electronic Overload Protection Fuse Input Protection Varistor Input Protection Fan Operation Mode Electronic Speed Control Terminal Block Input Connections Terminal Block Output Connections Acoustic Signals Output Voltage Out of Tolerance Overtemperature Overload LED Signals - Display Information Language Selection Alarms Fan Speed Internal Temperature/Overtemperature Active Bypass Automatic/Manual Bypass Load Level/Overload Input and Output AC Voltage Nominal Power Rating IPIP20 Operating Temperature (°C) -20... +50 Relative Humidity (Not Condensed) (%) 5 ÷ 95 Wall Installation Standards EN 55022 EN 61000-4-11 EN 61000-4-4 EN 61000-4-2 EN 60950-1 EN 61000-3-2 EN 61000-3-3 Width (mm) 395.00 Height (mm) 465.00 Depth (mm) 1 76.00 Weight (kg) 24.00
