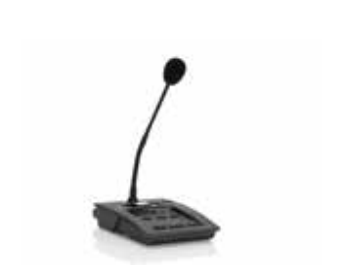

ELKRON FIRE 80MF0100123 Standard microphone base for table announcements
- MT Code
- ELK_I_80MF0100123
- Manufacturer Code
- 80MF0100123
- Brand
- ELKRON FIRE
Standard microphone base for table announcements
The microphone base for table announcements is equipped with an electret microphone. It can be connected directly to the evac control unit via an 8-conductor (4 pairs) fireproof type J cable. It is possible to connect up to four microphone bases in cascade (in the same line). In this case, the first microphone base of the line is powered directly by the central unit, while the others require external 24V@500 mA power supplies (for example, the optional power supply 80PS9400123). The overall length (considering the sum of all cables) must not exceed 800 m. Dimensions (W x H x D): 128 x 44 x 203 mm (without hose) Hose length: 276 mm
EN54 part 16 certified
Codice Produttore | 80MF0100123 |
---|---|
Brand | ELKRON FIRE |
