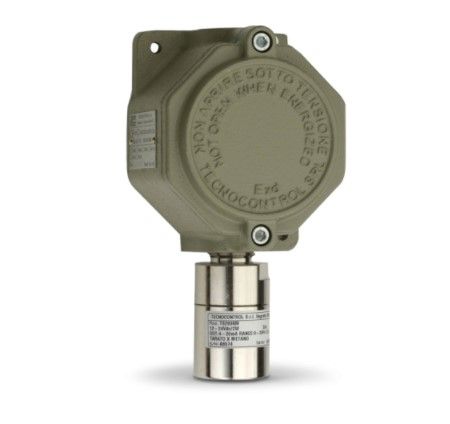

INIM FIRE TS293ES Sulfur Dioxide Detector (electrochemical) - Output 4÷20mA

MT Code: INM_TS293ES
Manufacturer Code: TS293ES
Brand: INIM FIRE

Description

Sulfur Dioxide Detector (electrochemical). 4÷20mA output. Measurement range 0÷20ppm. ATEX ZONE 1.

Gas detectors in explosion-proof enclosure for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

Power supply: 12÷24 Vcc - Atex marking: II 2G Ex d IIC T6 Gb - No. 1 linear output 4÷20 mA - Polarized plug-in terminals

Gas detected: Sulfur dioxide - Replacement cartridge: ZSES1/EX - Measuring range: 0÷20 ppm - Calibration bottle: B0468 - Average clean air life: 2 years

Data Sheet
