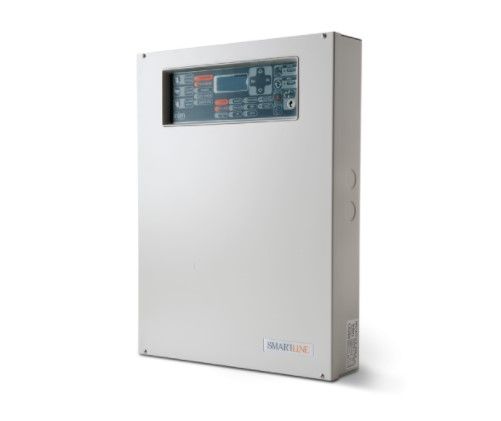

INIM FIRE SmartLine036-4EXT Switch-off control unit capable of managing 4 conventional detection zones
- MT Code
- INM_SMARTLINE036-4EXT
- Manufacturer Code
- SmartLine036-4EXT
- Brand
- INIM FIRE
Control unit capable of managing 4 conventional detection zones (expandable to 36) and 1 shutdown channel. Possibility to connect - via RS485 - the shutdown unit to the SMARTLOOP series detection panels. 4Ah Switching Power Supply. Max 2 12Vcc 17Ah batteries. CPR certification EN54pt2-4- EN54pt21 and EN12094pt1 IMQ.
The SmartLine036-4ext extinguishing unit is based on the SmartLine036-4 conventional 4-zone fire detection unit.
The control unit offers 1 SmartletLoose/ONE extinction channel and is able to offer all the functions of the conventional SmartLine036-4 control unit.
The SmartLine036-4ext extinguishing control unit can be interfaced with the SmartLoop series addressed analog control panels to provide them with the necessary extinguishing functions.
The interface takes place through the RS485 connection with which the extinguishing unit is equipped. It will thus be possible to program the SmartLine036-4ext extinguishing control unit in order to activate its functions both based on local information (conventional zones, extinction terminals, stop extinction terminals, etc.) and on the remote information coming from the SmartLoop control unit.
Codice a barre | 8050329000825 |
---|---|
Codice Produttore | SmartLine036-4EXT |
Brand | INIM FIRE |
SmartLine datasheet 110 IT
|
598.4 kB |
