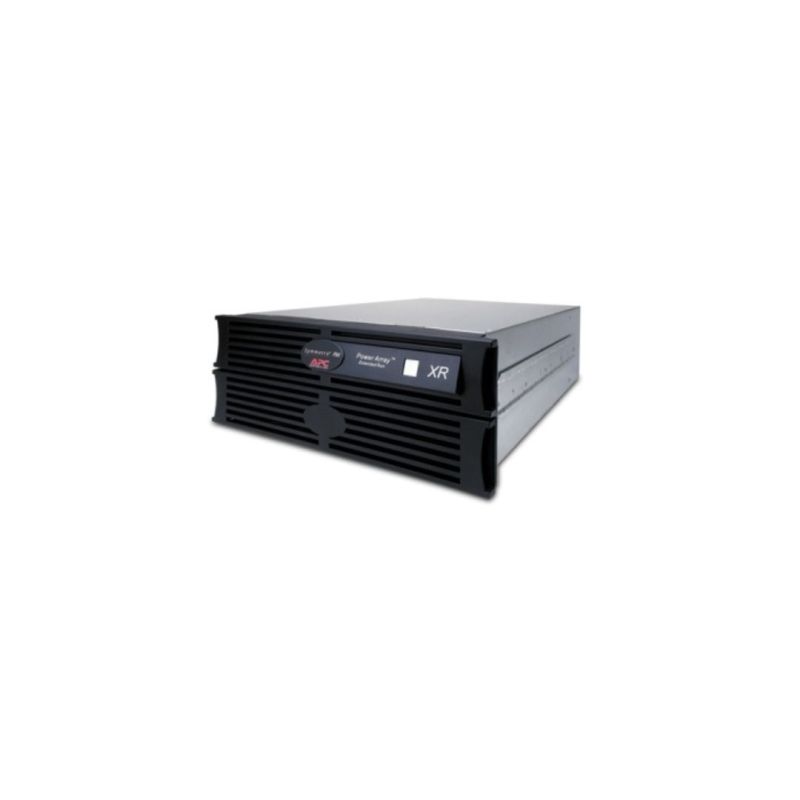

SYMMETRA 4U RACK-MOUNT

SYRMXR2B4I data sheet

Description

The Symmetra RM XR APC chassis with 2 scalable 4.220-240V SYBT2s is a modular uninterruptible power supply (UPS) that provides high-quality mains power and protection against power outages, surges, voltage drops, and other power issues.

features

- Nominal power: 2.0 kVA
- Peak power: 3.0 kVA - Input voltage: 220-240 V
- Output voltage: 220-240 V
- Transfer time: 6 milliseconds
- Runtime: 12 minutes

- Battery: 2 x 12V/26Ah
- Certification: IEC/EN 62040-1, IEC/EN 62040-2-1, IEC/EN 62040-3-1, UL 1778, CSA C22.2 No. 107-1, EN 50428, EN 50171, EN 61000-3-2, EN 61000-3-3

Functionality

- Power interruption protection: the Symmetra RM XR APC chassis with 2 SYBT2 provides uninterrupted mains power to connected loads in the event of a power interruption.
- Overvoltage protection: The Symmetra RM XR APC chassis with 2 SYBT2 protects connected loads from surges and voltage drops.
- Power management: The Symmetra RM XR APC chassis with 2 SYBT2s offers a number of power management features, including automatic switching between network and battery, manual switching between network and battery, synchronizing output with the network, and remote management via Ethernet.

Scalability

The Symmetra RM XR APC chassis with 2 SYBT2 is scalable up to 4, 220-240 V, adding additional APC Symmetra RM XR power modules.

Environmental conditions

- Operating temperature: 0 to 40 °C
- Operating humidity: 10 to 90% without condensation

Dimensions and weight

- Dimensions: 442 x 442 x 420 mm
- Weight: 25.4 kg

accessories

- Battery: APC Symmetra BT2
- Management software: APC PowerChute Business Continuity

Guarantee

- Warranty: 3-year limited
