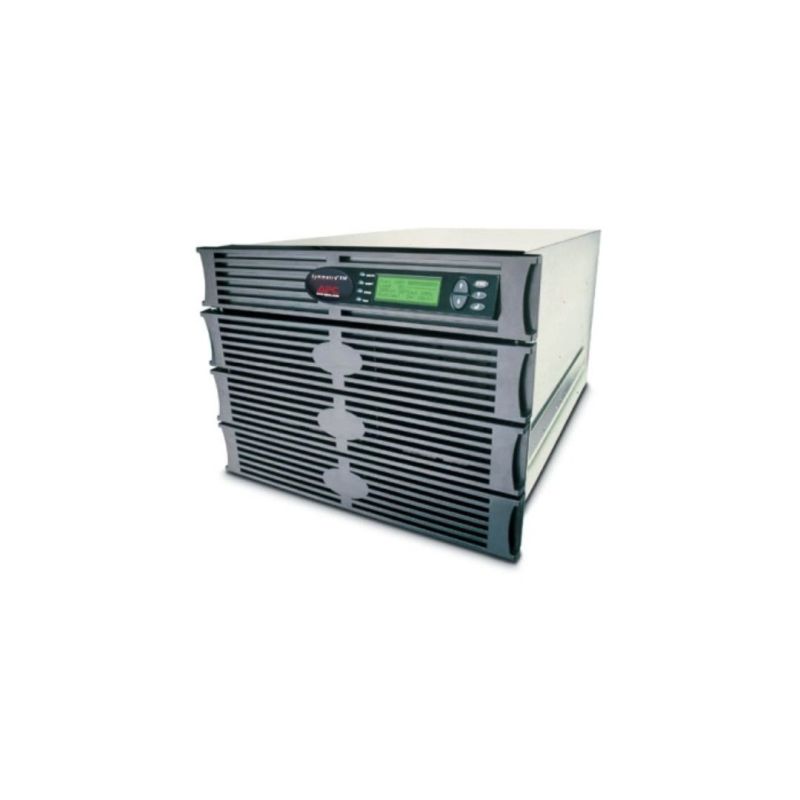

SYMMETRA RM 4 KVA EXPANDABLE TO 6 K

APC SYH4K6RMI data sheet

General Information

- Model: SYH4K6RMI
- Brand: APC - Category: Uninterruptible power supply
- Type: On-line

Technical Specifications

- Output power: 4 kVA
- Nominal output power: 2800 W
- Input voltage: 230 V
- Output voltage: 230 V
- Input frequency: 50/60 Hz
- Output frequency: 50/60 Hz
- Output waveform: Pure sine wave
- Minimum storage time at full load: 12.7 minutes - Time of
minimum backup at partial load: 21.3 minutes
- Transfer time: 0.02 milliseconds
- Duty cycle: 100%
- Overvoltage protection: 300 V - Overcurrent protection: 30 A
- Short circuit protection: 30 A
- Overload protection: 2800 W
- Overheat protection: Yes -

Moisture protection: Yes
- Dust protection: Yes

Connections

- Input: 8 IEC 320 C13 outlets
- Output: 8 IEC 320 C13 outlets

Other characteristics

- Smart-UPS Technology: Yes
- USB Interface: Yes
- Serial Interface: Yes - APC Network Management Card Interface: Yes
- APC PowerChute
Business Edition Software: Yes

Dimensions and weight

- Height: 440 mm
- Width: 432 mm
- Depth: 500 mm
- Weight: 37 kg

Guarantee

- 3 years

Conclusion

The SYH4K6RMI APC uninterruptible power supply is a reliable and powerful solution for protecting sensitive loads from power outages, surges, and other power grid anomalies. It offers an output power of 4 kVA and a nominal output power of 2800 W, enough to power a wide range of IT and telecommunications equipment. The Smart-UPS technology guarantees a clean and stable power supply, while the numerous protection functions
