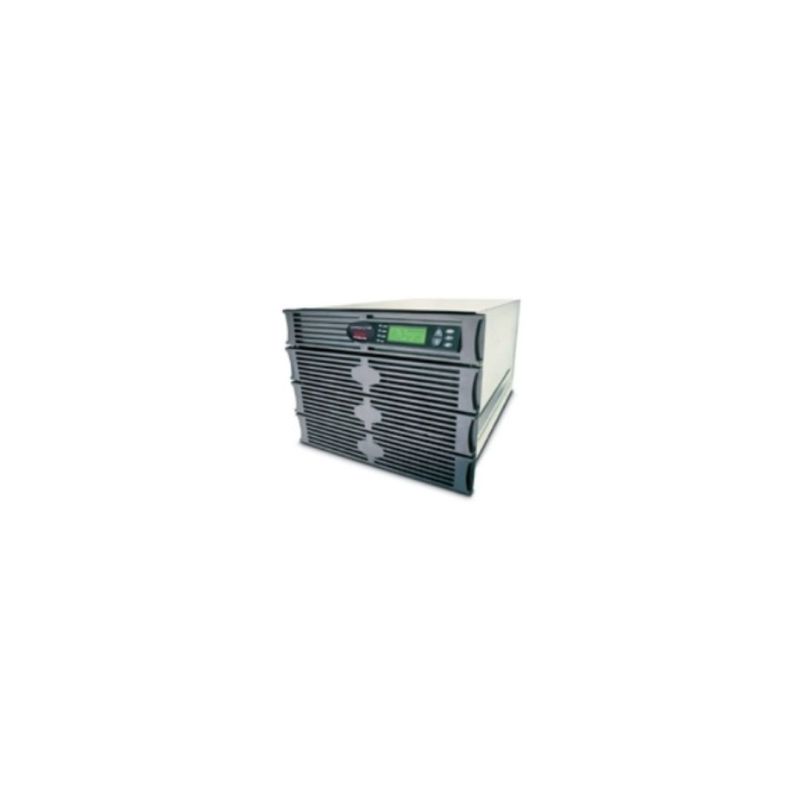

SYMMETRA RM 6 KVA N+1

APC Symmetra SYH6K6RMI data sheet

General characteristics

- Type: Uninterruptible power supply (UPS)
- Technology: Double conversion (online)
- Nominal power: 6 kVA
- Maximum power: 7.2 kVA
- Nominal current: 27 A
- Maximum current: 32 A
- Nominal input voltage: 230 V AC
- Nominal output voltage: 230 V AC
- Nominal frequency: 50/60 Hz
- Weight: 133.64 kg
- Dimensions (W x H x D): 48.3 x 35.6 x 73 cm
- Rack height: 8U

Functions

- N+1 redundancy
- Hot replaceability of batteries
- Automatic internal bypass
- Automatic restart of loads after stopping the UPS
- Scalable run-time - External “plug and play” batteries
- SmartSlot
- Battery disconnection warning
- Cold start option

Protections

- Overvoltage protection - Undervoltage protection
- Overload protection
- Short circuit protection
- Ground fault protection - Overcurrent protection
- Overtemperature protection

Environmental specifications

- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Relative humidity: 0 to 95% without condensation

Acoustic specifications

- Sound level: 53 dBA at 1 meter

Certifications

- CE
- UL
- CSA

Guarantee

- 3 years

Note

- This product is suitable for the protection of critical loads, such as servers, storage, networks and telecommunications equipment.
- The N+1 redundancy ensures that, in the event of a power module failure, the load will continue to be powered by the remaining module.
- Hot-swappable batteries allow batteries to be replaced without interrupting the power supply of loads.
- The internal automatic bypass provides mains power to the loads in the event of an overload or failure of the UPS.
